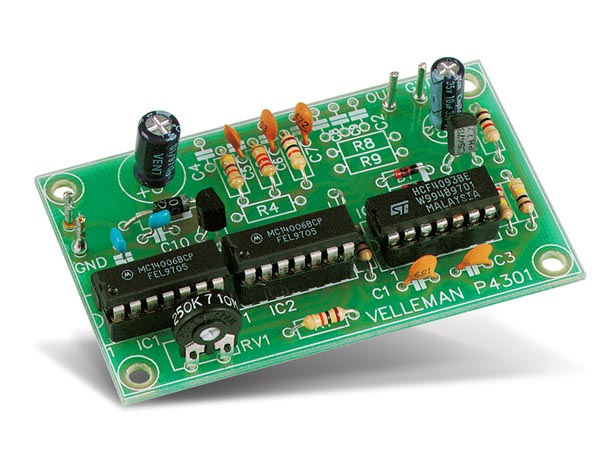

PINK NOISE GENERATOR (KIT)

(0 review)

SKU : WSAH4301
Quantity on Hand : 5
Skill Level : Kit - Basic Soldering Required

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

12.95 12.950000000000001 USD 12.95

12.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Description: A good pink noise generator and a spectrum analyzer are indispensable if you want to analyze the acoustic properties of a room (usually a living room). Moreover, you also need a microphone with a frequency characteristic that is as linear as possible (from 20Hz to 20kHz). If you have an equalizer, then the response can not only be checked but also corrected. The kit is easily adapted to produce "white noise".

Specifications:

  • pseudo random digital noise

  • regulator sliding length: 33 bit

  • clock frequency: adjustable between 30 and 100kHz

  • pink noise filter: 3dB / octave (20Hz to 20kHz)

  • output voltage: 150mVrms

  • output impedance: 1Kohm

  • power supply: 9 - 12VAC or 12 - 15VDC / 5mA

  • PCB dimensions: 72 x 43mm / 2.8 x 1.7"
