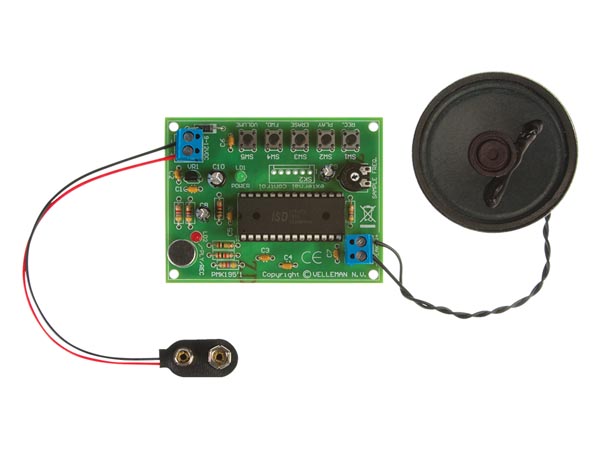

VOICE RECORDING/PLAYBACK MODULE

https://electronics123.odoo.com/web/image/product.template/12037/image_1920?unique=bd7bab6
(0 review)

SKU : WSAH195
Quantity on Hand : 5
Skill Level : Kit - Basic Soldering Required

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WSAH195

22.45 22.45 USD 22.45

22.45

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

ADD TO CART

Description:

Features:

Also available as completely mounted module; controllable with Arduino WPSH02: RECORDING AUDIO SHIELD FOR ARDUINO®

Features

  • recording time between 30 and 90 s (adjust the sample rate)
  • on-board microphone
  • speaker Ø 57 mm included
  • using the speed adjustment, a "funny voice" can be created
  • external open-collector trigger inputs for recording, playback, delete, next, and volume

Specifications

Technical data
Specifications
  • power supply : 9 … 12 VDC or with a 9 V battery (ex. 6LI61)
  • power consumption:
    • max. 150 mA during playback
    • max. 6 mA during standby!
  • adjustable sampling rate: 5…12 kHz
  • speaker output: 500 mW max., 8 Ohm
  • nominal recording time: 60 s



Operational properties
Instruction manual languagesDutch, English, French, German, Spanish
Coding skill levelnone
Electronics skill levelnone
Mechanics skill level1
Soldering skill level3



Product basic info
Height15 mm
Weight82 g
Depth60 mm
ColourGreen


Documentation and Downloads
