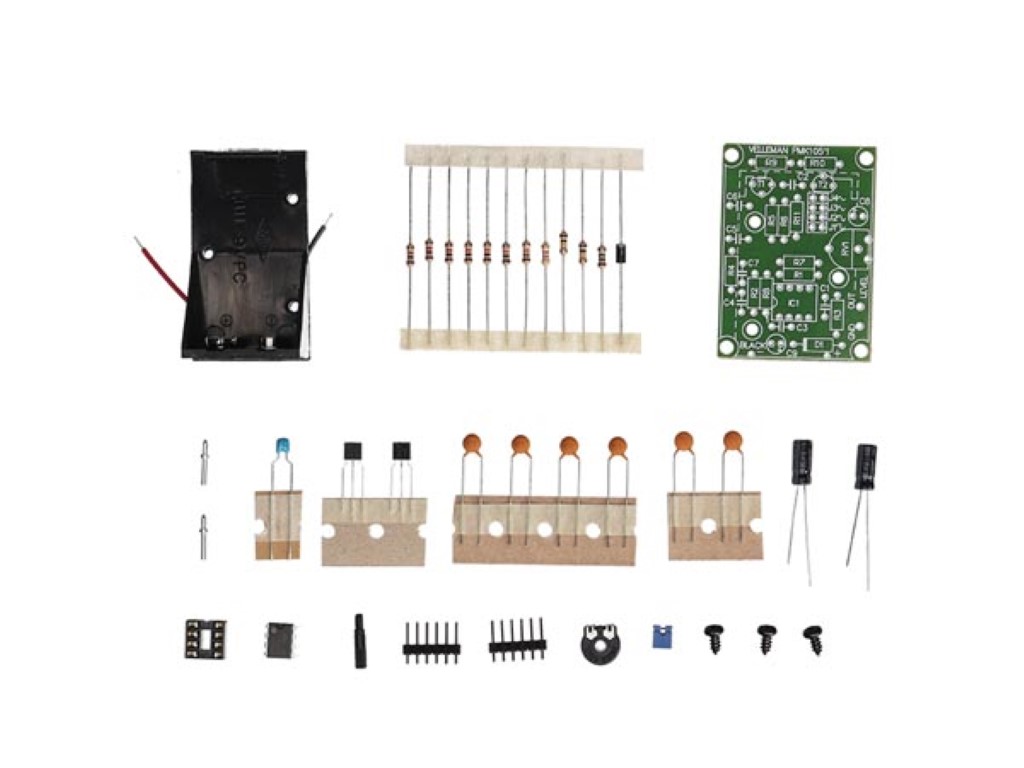

Signal Generator (Kit)

https://electronics123.odoo.com/web/image/product.template/4899/image_1920?unique=40a420e
(0 review)

SKU : WSAH105
Quantity on Hand : 11
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WSAH105

7.95 7.95 USD 7.95

7.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

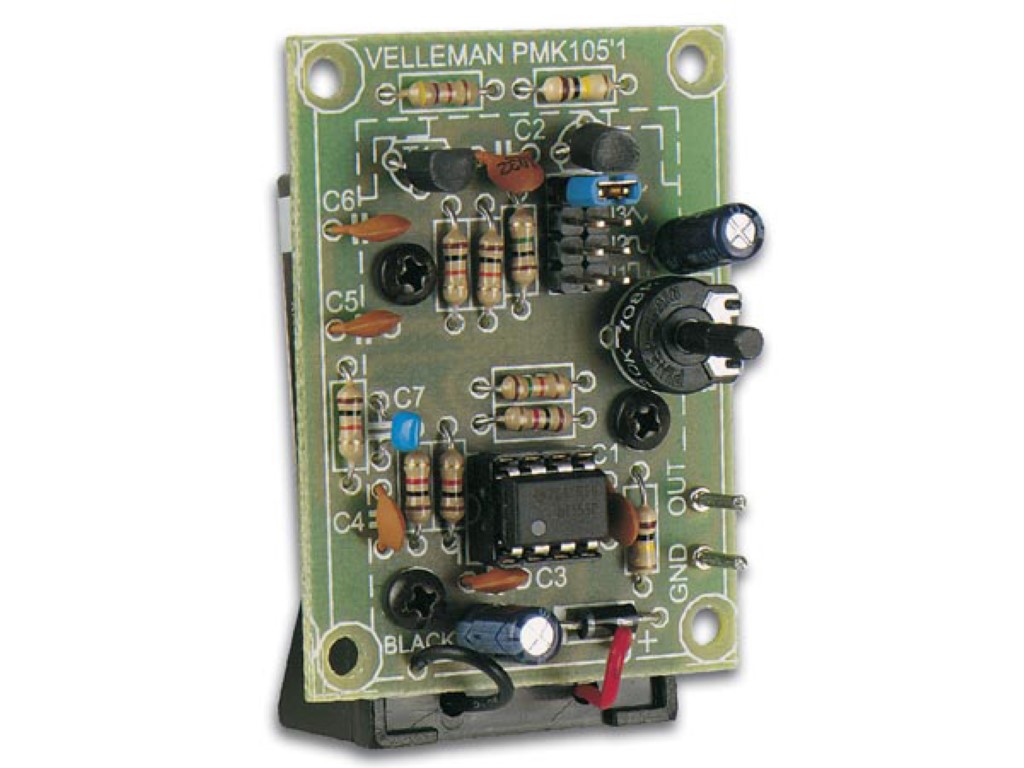

This signal generator is designed for easy monitoring and troubleshooting in, for example, audio equipment. The waveforms (sine, square wave, or triangle) and the output can be easily selected by setting jumpers. The frequency is fixed (1 kHz), and the output level is adjustable. The soldering kit works with a 9 V battery (not included).

Features:

  • Signal output: sine wave, triangle, square wave and integrator (selectable through jumper)
  • Signal frequency: about 1kHz (fixed)
  • Output level: adjustable from 0 to 100mVrms (LEVEL potentiometer)

Specifications:

  • Power supply: 9V battery (not incl.)
  • Dimensions: 2.2" x 1.6"
