Code Lock (Assembled)

https://electronics123.odoo.com/web/image/product.template/4532/image_1920?unique=043f4f5
(0 review)

SKU : WSAA6400-TBA
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WSAA6400-TBA

42.95 42.95 USD 42.95

42.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

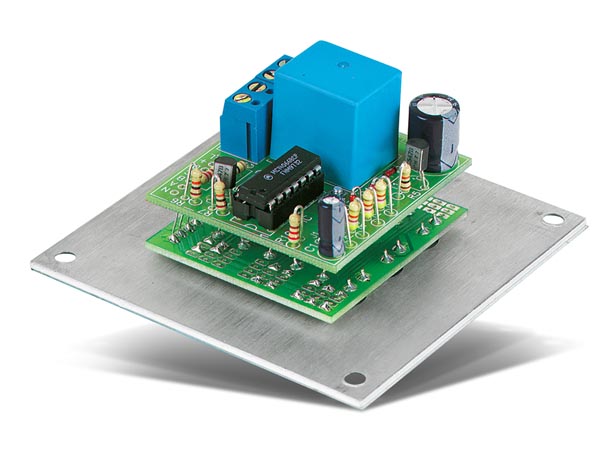

This code lock may be used to switch an alarm (e.g. car alarm K3504) on and off, or to open a door lock. An LED on the operating panel indicates the position of the 'lock'. The code is easy to define. Because the operation panel is completely enclosed, it may be used inside and outside the house. Specifications more than 3000 codes (4 digits) relay output: 5A / 110V time limit for code entry: ± 5 seconds power supply: 9 - 15V DC or 8 - 12V AC power consumption: output on: 40mA output off: 0.3µA dimensions: front panel : 3.2" x 3.2", depth : 1.6" Extra Info - Hints If not already mentioned replace R8 with a 10ohm type. (K6400)

NOTE: Please allow 24 hours for assembly!

Documentation and Downloads
