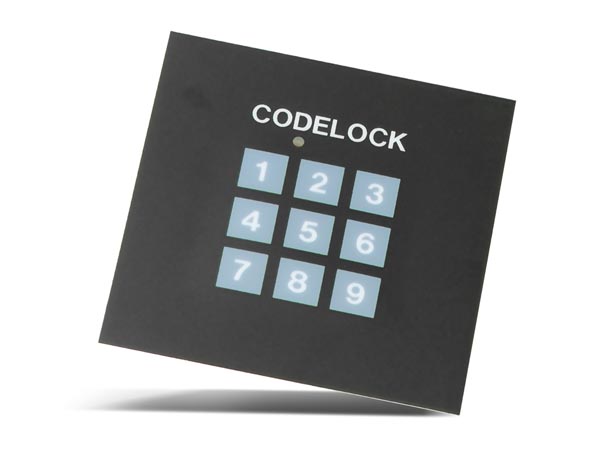

This code lock may be used to switch an alarm (e.g. car alarm K3504) on and off, or to open a door lock. An LED on the operating panel indicates the position of the 'lock'. The code is easy to define. Because the operation panel is completely enclosed, it may be used inside and outside the house.
Specifications:
more than 3000 codes (4 digits)
relay output: 5A / 110V
time limit for code entry: ± 5 seconds
power supply: 9 - 15V DC or 8 - 12V AC
power consumption:
output on: 40mA
output off: 0.3µA
dimensions: front panel : 3.2" x 3.2", depth : 1.6"
Extra Info
- Hints
If not already mentioned replace R8 with a 10ohm type.
Specifications:
more than 3000 codes (4 digits)
relay output: 5A / 110V
time limit for code entry: ± 5 seconds
power supply: 9 - 15V DC or 8 - 12V AC
power consumption:
output on: 40mA
output off: 0.3µA
dimensions: front panel : 3.2" x 3.2", depth : 1.6"
Extra Info
- Hints
If not already mentioned replace R8 with a 10ohm type.
