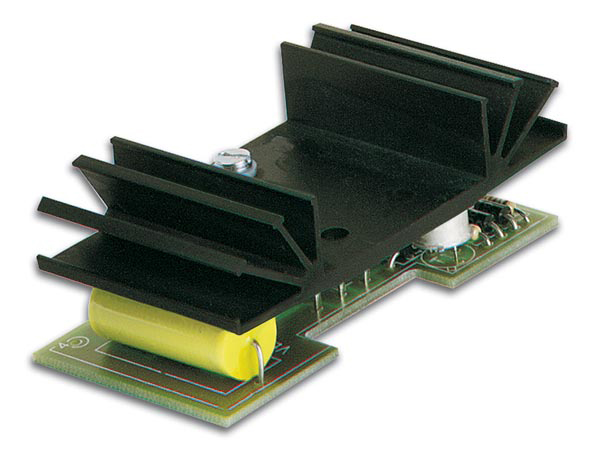

Electronic Transistor Ignition for Cars (Kit)

  • WeightMajor
  • WeightMinor

17.95 17.95 17.95 USD


This combination does not exist.

Add to Cart

SKU : WSAA2543
Quantity on Hand : 0
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

Description: Gives your car a better starting and smoother running, particularly at very high and very low RPM. Even the most skeptical one has to admit that the electronic ignition system has a great advantage over the conventional ignition system. Car constructors now mount such a new system on their most expensive models.

Only for petrol/gasoline engines and for cars with negative ground.


  • completely shockproof

  • practically test on 2-4-6-8 cylinder engines during a total amount of 2.500.000

  • principle: transistorized ignition

  • connection element: Darlington transistor, triple diffused

  • the advantages are:
            better ignition
            less air pollution
            lower fuel consumption
            lower servicing costs
            visible less wear of the breaking points, which means a constant calibrated state


  • for use with 6V and 12V system

  • Max. current: 4A

  • typical firing period: 2.000 µ second

  • Connection speed: up to 500kHz

  • PCB dimensions: 70 x 35mm / 2.8 x 1.4"

Extra Info:
For use on a 6V system replace next parts :

  • R1 and R2 : 150 ohm / 1W

  • R3 : 68 ohm 1/4W

  • R5, R6 and R7 : 68 ohm / 1W
