6.95 6.95 6.95 USD


This combination does not exist.

Add to Cart

Quantity on Hand : 10
Skill Level : Kit - Basic Soldering Required

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

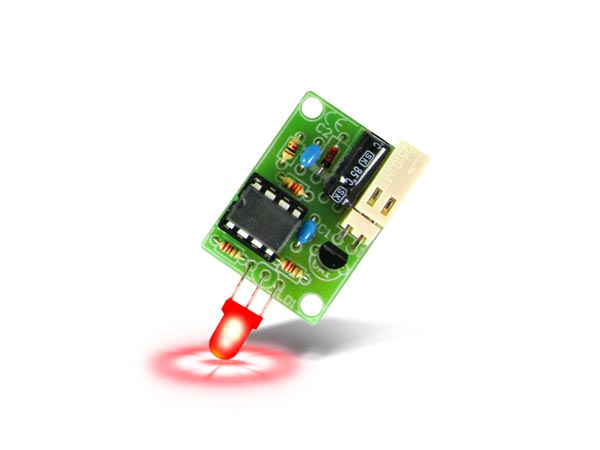

Description: This small circuit is of great value to check you car battery status.


  • easy to build in
  • only 2 wires to connect (connect after ignition)
  • uses multi colour 3mm LED
    • green: battery OK
    • Slow pulsing (green): battery OK or charging
    • red: battery voltage is low
    • red blinking: battery is being overcharged
  • includes: board to wire connector
  • dimensions: 30x20mm / 1.18 x 0.78" (board)
  • Voltage thresholds are (+/- 2%):
    • RED: 5-10.9V battery low
    • GREEN: 11 - 13.2V battery OK
    • GREEN GLOW: 13.3 - 17.7V battery charging
    • RED BLINK: 15.8 + battery NG or overcharging
