2.4GHz Antenna - Adhesive (U.FL connector)

  • WeightMajor
  • WeightMinor

5.45 5.45 5.45 USD


This combination does not exist.

Add to Cart

SKU : WRL-11320
Quantity on Hand : 6
Skill Level : Component or Part
Not ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

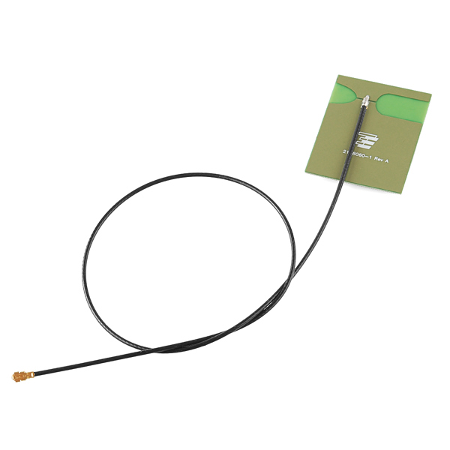

Description: This adhesive, omni-directional antenna is perfect for situations when you're trying to get a signal out from a transmitter that you've jammed down into an enclosure. Operating on the 2.4GHz band, it works great for WiFi, Bluetooth or ZigBee. Just connect the antenna using the attached u.fl connector and then peel and stick!

Dimensions: 41 x 30mm, 350mm cable


Type: Omni-Directional
Min Frequency: 2300|5150 MHz
Max Fequency: 3800|5875 MHz
Impedance: 50 Ohm
Maximum VSWR: 3
Typical Gain: 2(Max) dB
