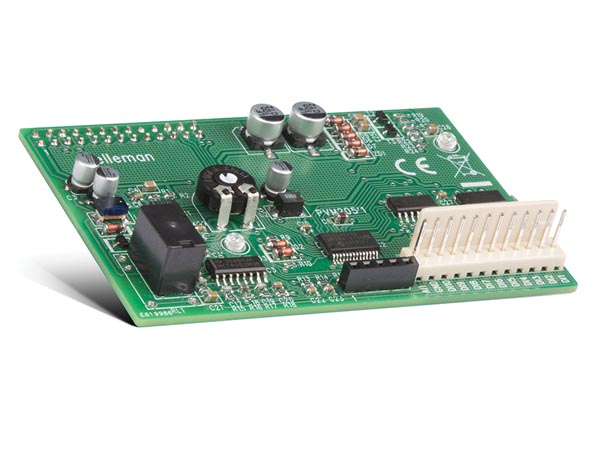

Do you have a Raspberry Pi? Add this shield and you will also own a digital storage oscilloscope!
This shield offers all standard oscilloscope features and comes with the source code, so you can develop your own applications.
As a bonus, you also get a 10-channel logic analyzer, a great tool to monitor digital signals.


  • oscilloscope:
    • maximum sample rate : 1MS/s
    • input amplifier bandwidth : 200kHz (-3dB)
    • measurements can be performed up to: 100kHz
    • input impedance : 100kohm // 20pF
    • maximum input voltage: 30Vp (AC + DC)
    • input coupling: AC+DC
    • AD resolution: 8 bit
    • record length: 800 samples
    • run modes: Run, Single
    • trigger level adjustable: in 254 steps
    • timebase range: in 15 steps 5µs to 200ms/division
    • input sensitivity range : in 6 steps, 100mV/division to 5V/division
    • input sensitivity: 3mV display resolution
    • time and Voltage markers readout
    • frequency readout (through markers)
  • logic analyzer:
    • Number of channels: 10
    • record length: 10x800 samples
    • maximum sample rate: 1MS/s
    • max. input voltage: 5VDC
  • Raspberry Pi is a trademark of the Raspberry Pi Foundation

  • Compatibel met RPi 4 (1,2, 4GB) en OS Raspbian desktop
