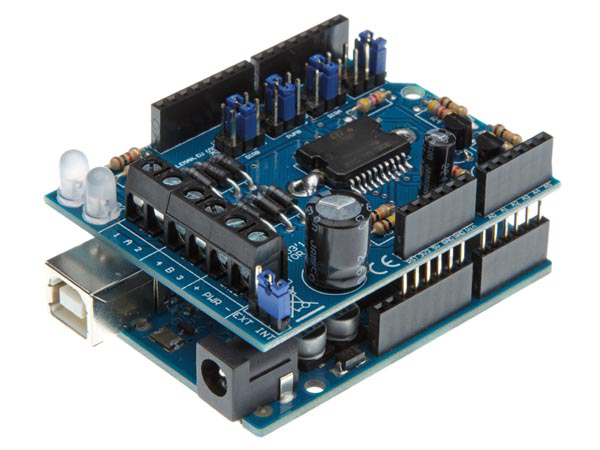

MOTOR & POWER SHIELD FOR ARDUINO
SKU : WPSH03
Quantity on Hand :
4
Skill Level : Assembled and Tested
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: Power shield that can drive: relays, solenoids, DC and stepper motors.
Features
- 2 channels
- choose between an external or internal (Vin) power supply
- based on the dual full bridge driver L298P
- downloadable sample sketch
- stackable design: the shield can be stacked with other shields
- large user community
- requires 1 Arduino UNO™ (not included)
Specifications
- 2.5 A (max.) output current (each channel)
- 50 V (max.) external power supply input
- used pins on an Arduino UNO™ board can be selected to accommodate for other stacked shields
- dimensions: 75 x 55 x 30 mm / 2.95 x 2.16 x 1.18"
