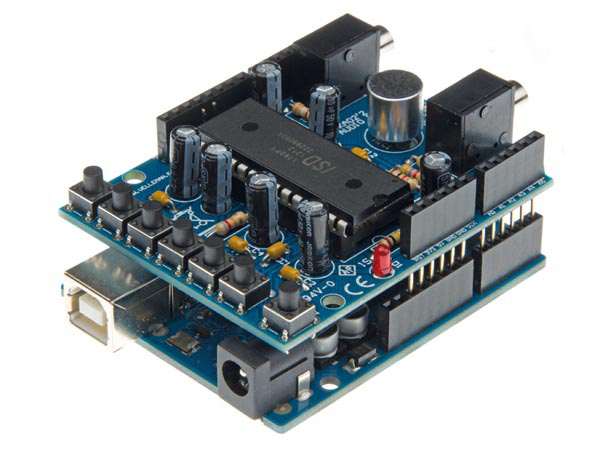

RECORDING AUDIO SHIELD FOR ARDUINO

  • WeightMajor
  • WeightMinor

29.95 29.95 29.95 USD

29.95

This combination does not exist.

Add to Cart

SKU : WPSH02
Quantity on Hand : 4
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

Description: Record your voice or any other sound thanks to the built-in microphone or a line input on this shield.

Features:

  • 60 second recording time
  • start playback, record,… via on-board buttons or via Arduino® UNO
  • playback via a speaker or a line output
  • downloadable sample sketch and library
  • stackable design: the shield can be stacked with other shields
  • large user community
  • requires 1 Arduino UNO™ (not included)

Specifications:

  • audio sample frequency: 8 kHz
  • uses pin 10 on an Arduino® UNO board as a Chip Select
  • uses the ICSP pins on an Arduino as a serial connection to the shield to free up I/O pins
  • memory write up to 100.000 X
  • dimensions: 80 x 55 x 30 mm / 3.15 x 2.16 x 1.18"
