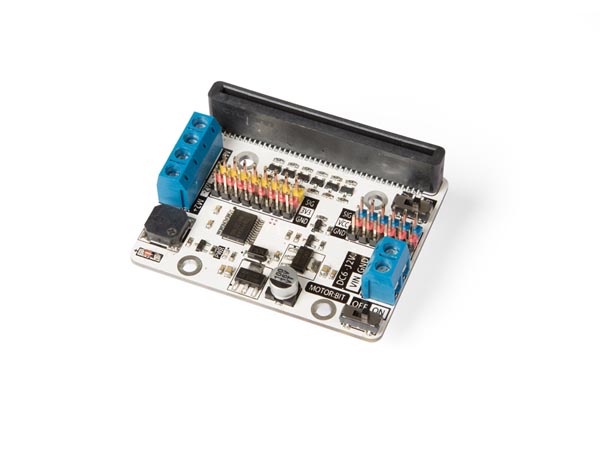

MOTOR SHIELD FOR MICROBIT
SKU : WPSH006
Quantity on Hand :
0
Skill Level :
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: This motor shield is compatible with micro:bit® and can be used to drive 2 DC motors at the same time. On top of that, you don't lose your micro:bit®'s 14 channel I/O ports because this little motor shield extends them. The motor driving chip is a TB6612 and drives a maximum of 1.2 A current.
Features
- supports 2 DC motors
- chip: TB6612
- extend 14 channel I/O ports
- buzzer controled by micro:bit® P0 port
Specifications
- voltage range: 6-12 VDC
- maximum output current: 2 x 1.2 A
- extendable digital IO ports: 12
- extendable analogue I/O ports: 3
- dimensions: 60 x 47.5 x 13 mm
