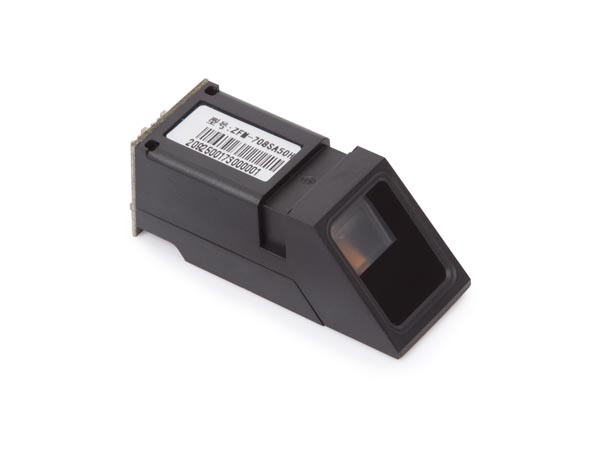

Fingerprint Sensor ZFM-708
SKU : WPSE329
Quantity on Hand :
1
Skill Level : Assembled and Tested
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Specifications:
- power: DC 3.8 V to 7.0 V
- Back Light: Green
- Baud rate : (9600 x N)bps, N=1-12 (default N=6)
- image acquiring time: <0.5 s
- Finger prints storage capacity: 1000
- False Acceptance Rate: 0.001% (at Security level 3)
- False Reject Rate: 1.0% (Security level 3)
- Interface: TTL serial
- operating current (max.): 95 mA
- Average searching time: 1 s
- working temperature: -20 - +50 ?
- outline dimensions: 54 x 20 x 20.5 mm
