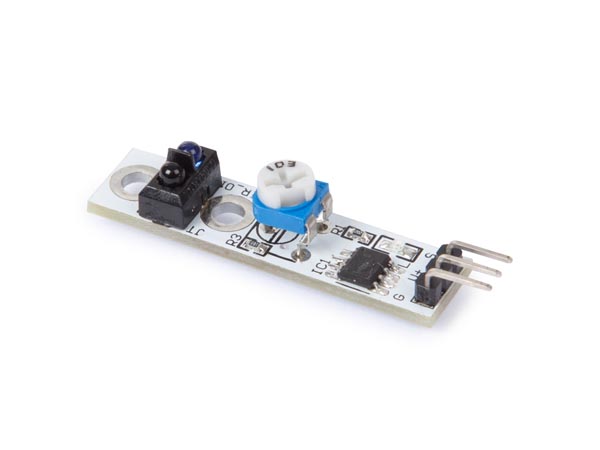

Line Tracking Sensor TCRT5000 Module
(0 review)

Quantity on Hand : 1
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


6.25 6.25 USD 6.25


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: The Line Tracking Sensor based on TCRT5000 is an type of infrared reflectance sensor, and is commonly used in line following robots, it is mounted at the bottom of the robot chassis. The line tracking sensor works by detecting reflected light coming from its own infrared LED and by measuring the amount of reflected infrared light, it can detect transitions from light to dark (lines) or even objects directly in front of it.


  • Sensor adopts TCRT5000, high sensitivity

  • Sensitivity adjustable by potentiometer

  • working voltage: 3.3 V - 5 V

  • operating current: 20 mA

  • Digital switch output (0 and 1)

  • Has 2 fixed bolt holes, convenient installation

  • small board PCB size: 42 x 10.5 mm

  • Power indicator light (red) and digital switch output indicator light (green)

  • detection reflection distance: 1 mm - 25 mm
