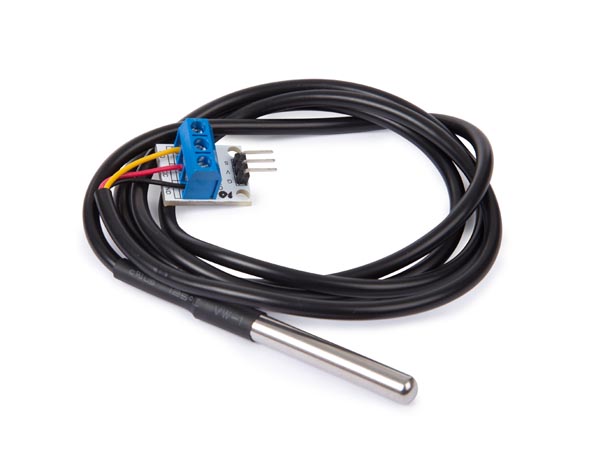

Temperature Probe DS18B20 and Arduino Compatible Adapter

https://electronics123.odoo.com/web/image/product.template/9968/image_1920?unique=3ac2410
(0 review)

SKU : WPSE324
Quantity on Hand : 1
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WPSE324

13.55 13.55 USD 13.55

13.55

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: The VMA324 ( DS18B20) Digital Thermometer provides 9 to 12-bit (configurable) temperature readings which indicate the temperature of the device.

Features:

  • DS18B20 specs: unique 1-wire interface requires only one port pin for communication
  • Multidrop capability simplifies distributed temperature sensing applications
  • Requires no external components
  • can be powered from data line, power supply range is 3.0 V to 5.5 V
  • Zero standby power required
  • measures temperatures from -55°C to +125°C (Fahrenheit equivalent -67°F to +257°F)
  • ± 0.5°C accuracy from -10°C to +85°C
  • Thermometer resolution is programmable from 9 to 12 bits
  • Converts 12-bit temperature to digital word in 750 ms (max.)
  • user-definable, non-volatile temperature alarm settings
  • Alarm search command identifies and addresses devices whose temperature is outside of programmed limits (temperature alarm condition)
  • 3-wire adaptor for Arduino included

Specifications:

  • dimensions stainless steel tube:

    • diameter: 6 mm

    • length: 30 mm

  • dimensions cable:

    • diameter: 4 mm

    • length: 36" (91 cm)

  • connections:

    • red: 3-5 V

    • black: ground

    • yellow: data
