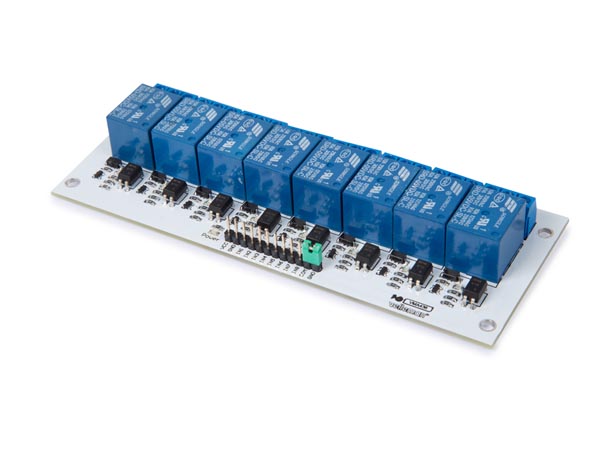

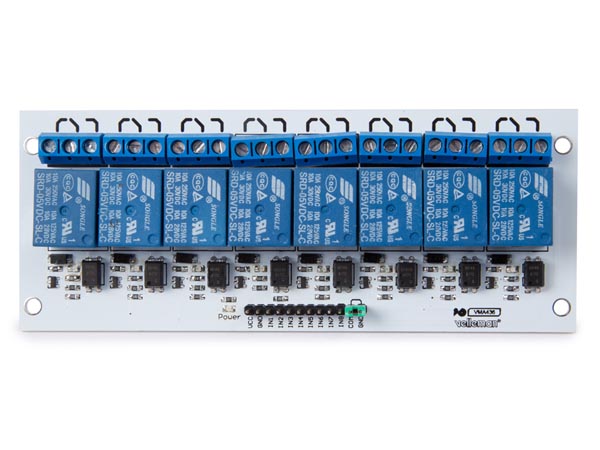

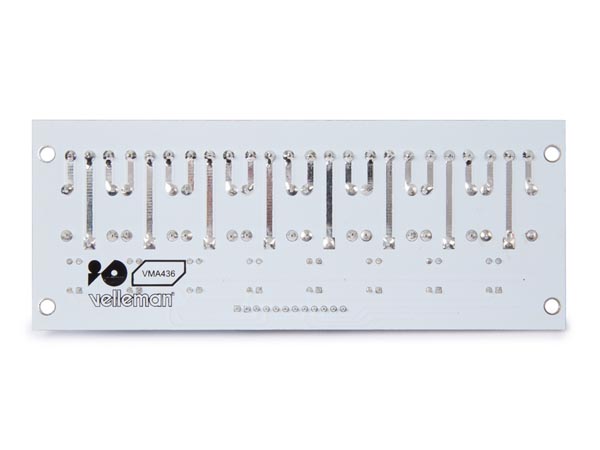

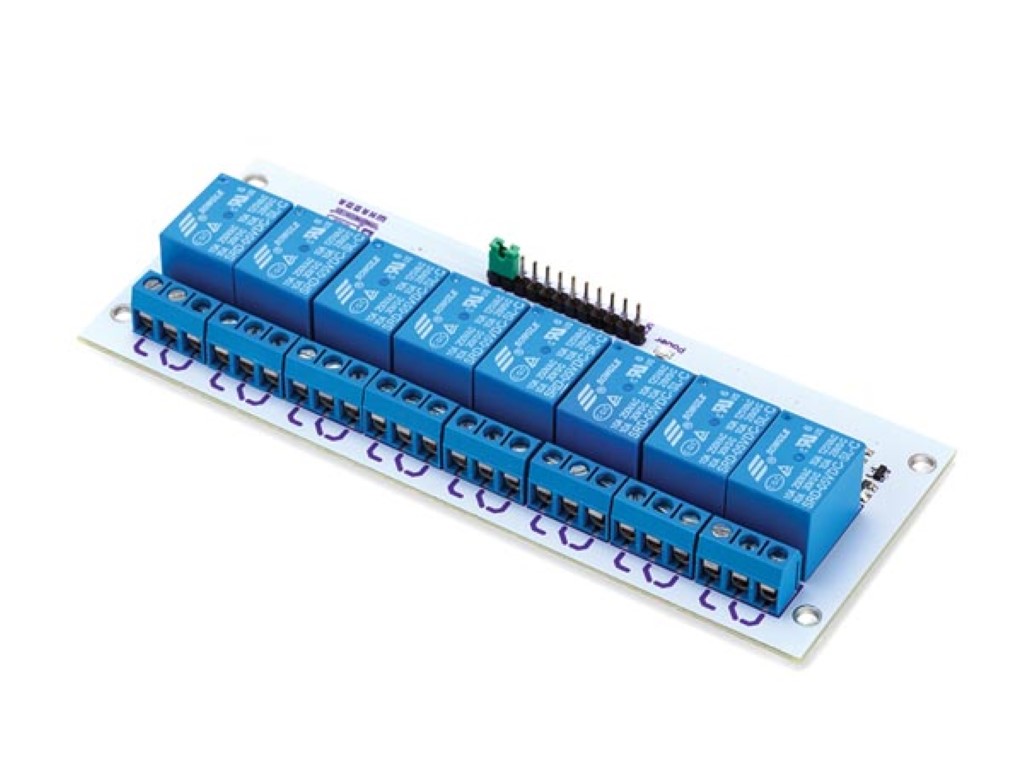

8 Channel Relay Module
SKU : WPM436
Quantity on Hand :
4
Skill Level : Assembled and Tested
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: This 8-channel relay interface board can control various appliances and other equipments with high current. It can be controlled directly by any micro-controller.
Features:
standard interface that can be controlled directly by any microcontroller
opto-isolated inputs
indicator LEDs for relay output status
Specifications:
control input current (in1 to in4): 5 - 25 mA
control input voltage: 5 - 12 VDC
relay output: 250 VAC 10 A; 30 VDC 10 A (non-inductive)
dimensions: 57 x 138 mm
operating voltage: 5 V
