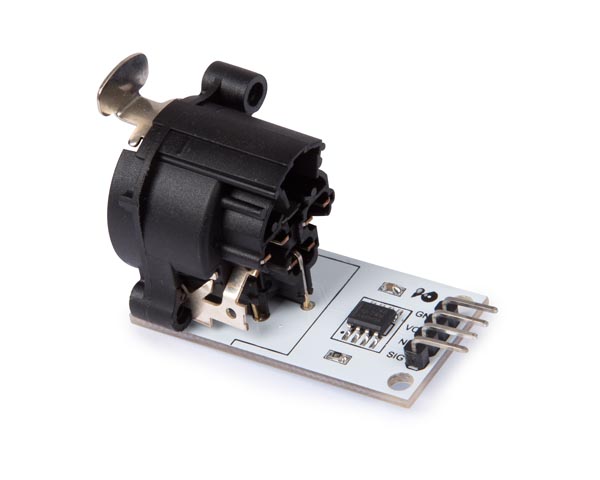

DMX512 Module

https://electronics123.odoo.com/web/image/product.template/9983/image_1920?unique=60f8f42
(0 review)

SKU : WPM432
Quantity on Hand : 2
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WPM432

15.45 15.450000000000001 USD 15.45

15.45

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

            Description: This Arduino add-allows you to use the Arduino as a DMX master device (transmitter). This board is a simple circuit based around a driver chip (MAX-485 or SN 75176). With XLR 3 pin male DMX output connector. Pin1 = Signal Common, Pin2 = Data-, Pin3 = Data+ The board converts the Arduino signal voltage according to DMX (RS485). Impedance is 100 Ohm.


            Specifications:

            • working voltage: 5 V
            • DMX connection: XLR 3 pin
            • dimensions: 40 x 20 x 30 mm
            • weight: 10 g
