DMX512 Module

  • WeightMajor
  • WeightMinor

15.95 15.95 15.950000000000001 USD


This combination does not exist.

Add to Cart

SKU : WPM432
Quantity on Hand : 2
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

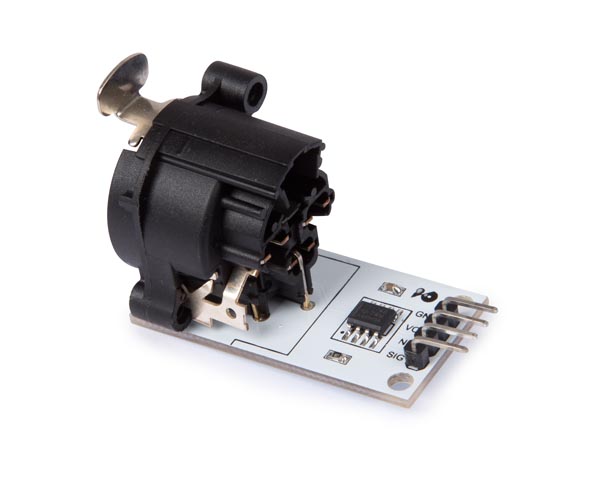

            Description: This Arduino add-allows you to use the Arduino as a DMX master device (transmitter). This board is a simple circuit based around a driver chip (MAX-485 or SN 75176). With XLR 3 pin male DMX output connector. Pin1 = Signal Common, Pin2 = Data-, Pin3 = Data+ The board converts the Arduino signal voltage according to DMX (RS485). Impedance is 100 Ohm.


            • working voltage: 5 V

            • DMX connection: XLR 3 pin

            • dimensions: 40 x 20 x 30 mm

            • weight: 10 g

            Documentation and Downloads
