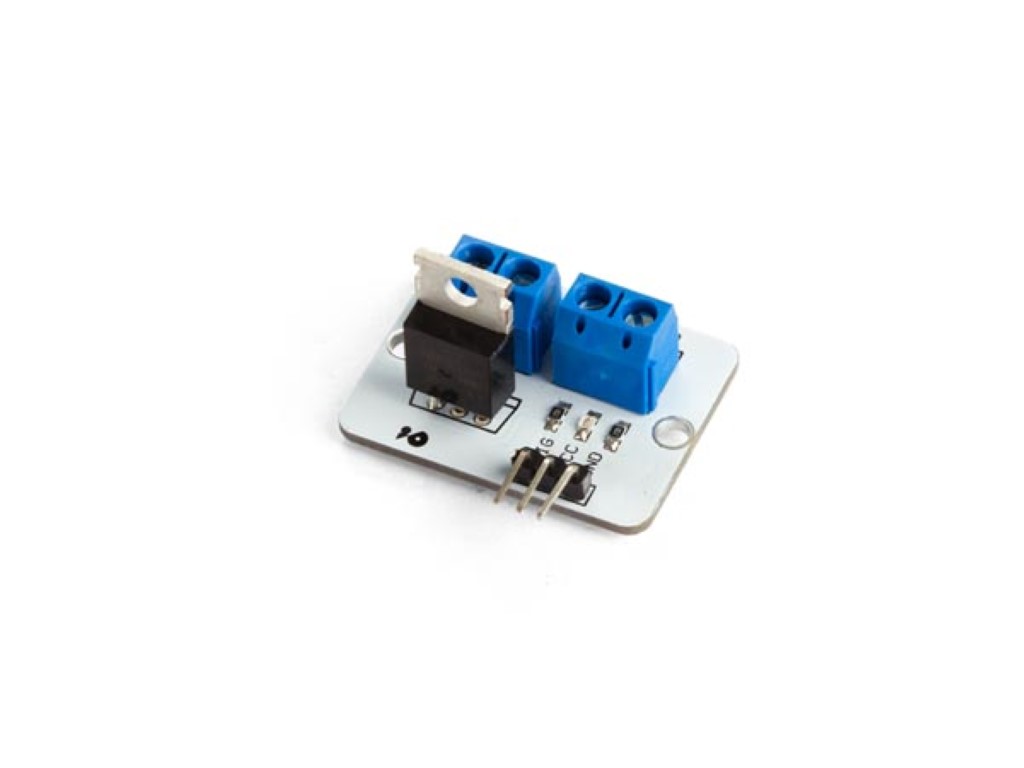

MOS DRIVING MODULE

https://electronics123.odoo.com/web/image/product.template/12207/image_1920?unique=a0daa4d
(0 review)

SKU : WPM411
Quantity on Hand : 7
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WPM411

7.15 7.15 USD 7.15

7.15

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description:

Specifications

  • operating voltage: 3 to 5 VDC
  • max. load voltage: 0 to 24 VDC
  • input: SIG pin, logic level 3 to 5 VDC
  • max. load current: 5 A (a heatsink is required for loads > 1 A)
  • used MOSFET: IRF520


Operational properties

  • Instruction manual languages English
  • Coding skill level none
  • Electronics skill level none
  • Mechanics skill level none
  • Soldering skill level none


Product basic info

  • Colour unit Light blue
  • Width unit 34 mm
  • Weight unit 13 g
  • Height unit 16 mm
  • Depth unit 21 mm
  • Additional colour Black, Blue, White
