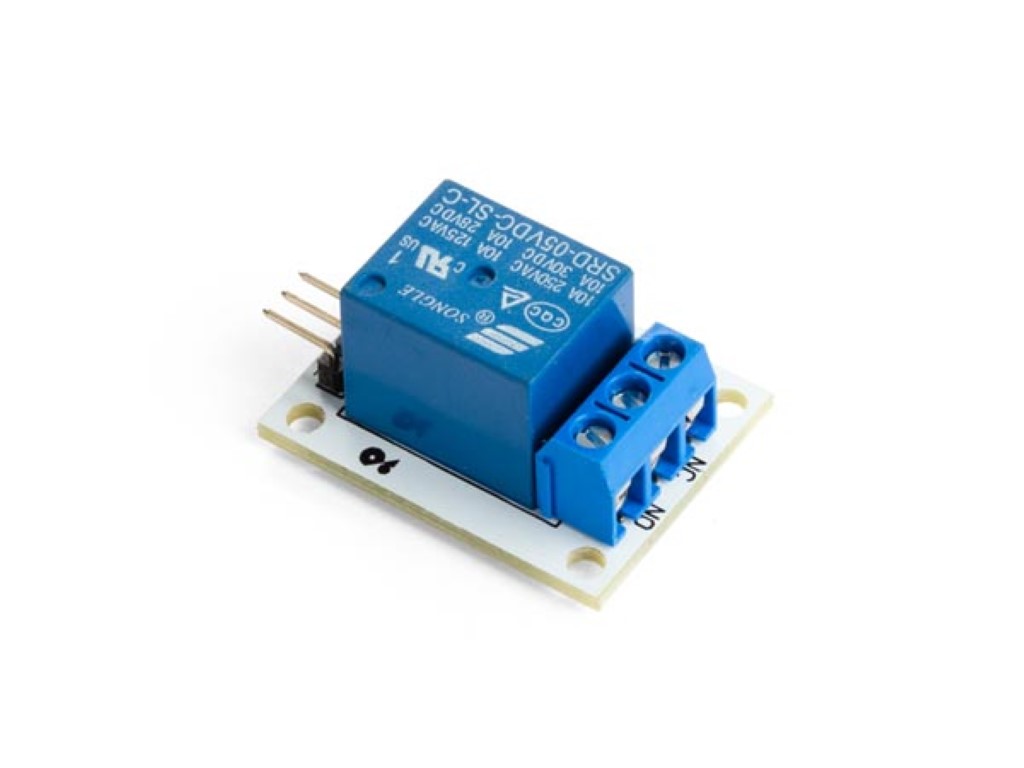

5V relay module, compact and easy to connect

https://electronics123.odoo.com/web/image/product.template/12322/image_1920?unique=e304098
(0 review)

SKU : WPM406
Quantity on Hand : 7
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

7.85 7.8500000000000005 USD 7.85

7.85

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description:

This 5V relay module serves as an electronic switch. It is controlled by a small signal, such as that from a microcontroller. When activated, it allows current from a higher source to flow to a device, such as a lamp. The module isolates the microcontroller from this higher current, ensuring safe operation. In essence, it enables small devices to control larger devices. This compact module, with dimensions of 40 mm in width, 18 mm in height, and 27 mm in depth, is designed to seamlessly integrate into your electronic projects.

+ Powerful : Suitable for high currents of 10 A at both 250 VAC and 30 VDC

+ Universal control: Compatible with a wide voltage range of 5-12 VDC for versatile applications.

+ With relay contacts: Equipped with C, NO, and NC contacts for flexible connection options.

+ STEM project: Develop and improve your STEM skills and acquire the knowledge, skills and experience needed to face the technological challenges of the future with this educational kit. This educational kit will trigger a number of processes such as problem-solving, investigative and creative thinking.

+ Made in Belgium : Whadda is a unique brand from Belgium's Velleman Group that offers DIY projects for hobbyists or makers who want to immerse themselves in electronics, programming and mechanics.



Features:

Product basic info
Instruction manual languagesEnglish
Primary coloursBlue
Additional coloursBlue
Additional detailed coloursLight blue
Depth unit27 mm
Height unit18 mm
Width unit40 mm
Weight unit19 g



Technical data
Specifications kits & modules
  • operating voltage: 5 VDC
  • relay current rating: 10 A at 250 VAC, 10 A at 30 VDC (non inductive)
  • relay contact: C, NO, NC
  • connection : GND, +5 VDC, control input (5 to 12 VDC)



Operational properties
Coding skill levelnone
Electronics skill levelnone
Mechanics skill levelnone
Soldering skill levelnone

Documentation and Downloads
