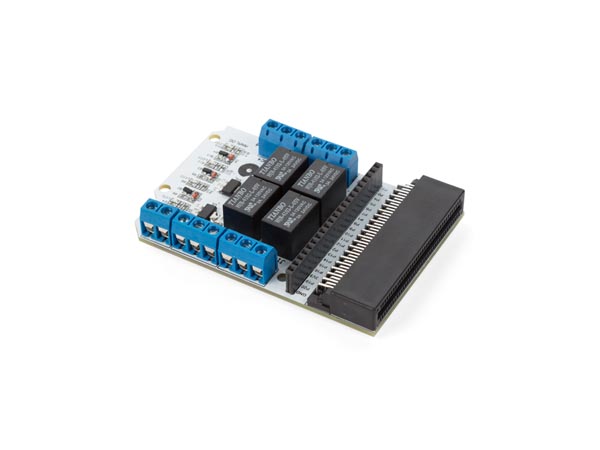

4 CHANNEL RELAY MODULE FOR MICROBIT

https://electronics123.odoo.com/web/image/product.template/11821/image_1920?unique=0544e0e
(0 review)

SKU : WPM401
Quantity on Hand : 4
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WPM401

15.45 15.450000000000001 USD 15.45

15.45

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart


Description: This 4-channel relay interface board can control various appliances and other equipments with high current. It can be controlled directly by a MICROBIT®.

Features

  • BBC micro:bit® interface connector
  • indicator LEDs for relay output status
  • 3.3 V regulator on board

Specifications

  • control input current (P3, P4, P6, P7): max. 5 mA
  • control input voltage: 3.3 - 5 VDC
  • relay output: 24 VDC 3 A (non-inductive)
  • dimensions: 57 x 80 mm
  • operating voltage: 5 VDC
  • contacts: NO / NC
