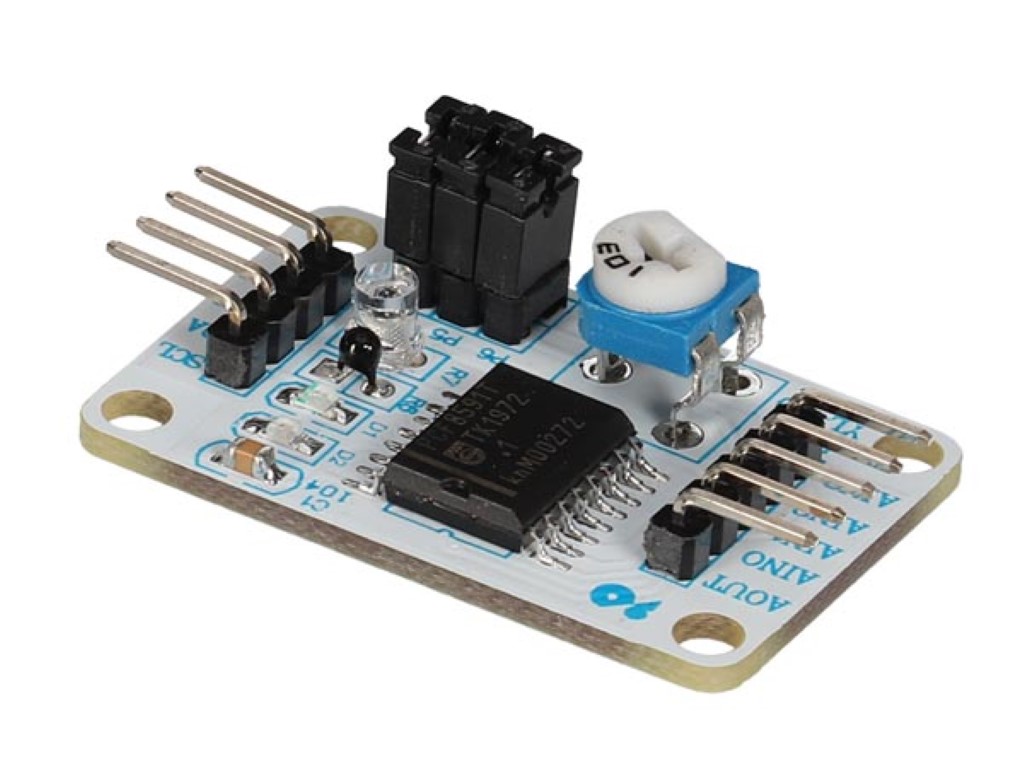

A/D D/A CONVERTER MODULE PCF8591

https://electronics123.odoo.com/web/image/product.template/12208/image_1920?unique=a3a93ed
(0 review)

SKU : WPM344
Quantity on Hand : 6
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WPM344

8.25 8.25 USD 8.25

8.25

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description:

  • single power supply
  • operating supply voltage 2.5 V to 6.0 V
  • low standby current
  • serial input and output via I2C-bus
  • max sampling rate given by I2C-bus speed
  • 4 analog inputs configurable as single ended or differential inputs
  • auto-incremented channel selection
  • analog voltage range from VSS to VDD
  • on-chip track and hold circuit
  • 8-bit successive approximation A/D conversion
  • multiplying DAC with one analog output

Features

  • single power supply
  • operating supply voltage 2.5 V to 6.0 V
  • low standby current
  • serial input and output via I2C-bus
  • max sampling rate given by I2C-bus speed
  • 4 analog inputs configurable as single ended or differential inputs
  • auto-incremented channel selection
  • analog voltage range from VSS to VDD
  • on-chip track and hold circuit
  • 8-bit successive approximation A/D conversion
  • multiplying DAC with one analog output


Operational properties

  • Instruction manual languages English
  • Coding skill level 2
  • Electronics skill level 3
  • Mechanics skill level 1
  • Soldering skill level none


Product basic info

  • Colour unit Light blue
  • Weight unit 10 g
  • Additional colour Black, Blue, White
