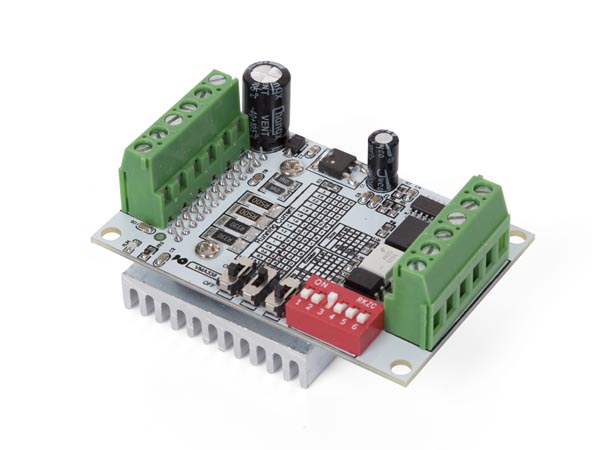

TB6560 3A Stepper Motor Driver Board

(0 review)

SKU : WPM333
Quantity on Hand : 2
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

16.20 16.2 USD 16.20

16.20

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Share

Features:

  • 6N137 high-speed OptoCouple to ensure high speed without losing steps

  • for 42,57,86 Stepper within 3A  2/4 -phase / 4 wire / 6 wire stepper motor

  • automatic half-decay

  • excitation mode: synchronizing, half step, 1/8 step, 1/16 step

  • current level is adjustable to meet your application needs

  • large heat sink for good heat dissipation

  • overheating and over-current protection circuit to ensure optimal performance

Specifications:

  • operating voltage: 10 to 35 VDC

  • rated output current: ± 3 A - peak 3.5 A

  • dimensions: 50 x 75 x 35 mm

  • weight: 80 g
