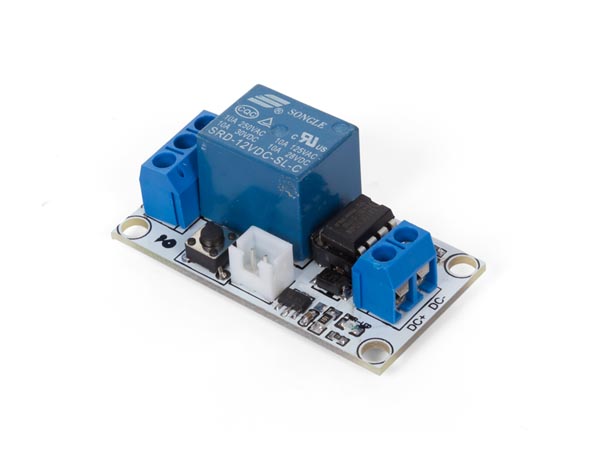

Specifications:
power supply: 12 VDC
supply current: 15 - 50 mA
trigger current: 0.5 mA
contact rating: 10 A 250 VAC / 10 A 30 VDC
dimensions: 5 x 2.5 x 2 cm
weight: 25 g
Documentation and Downloads
