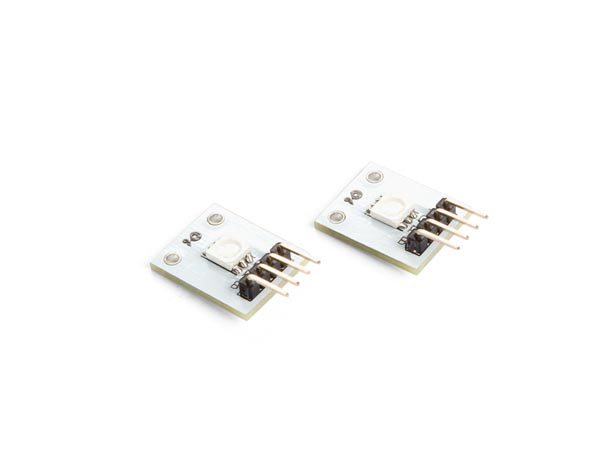

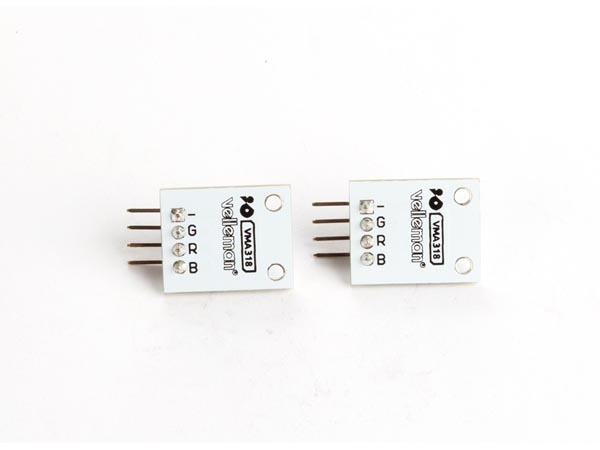

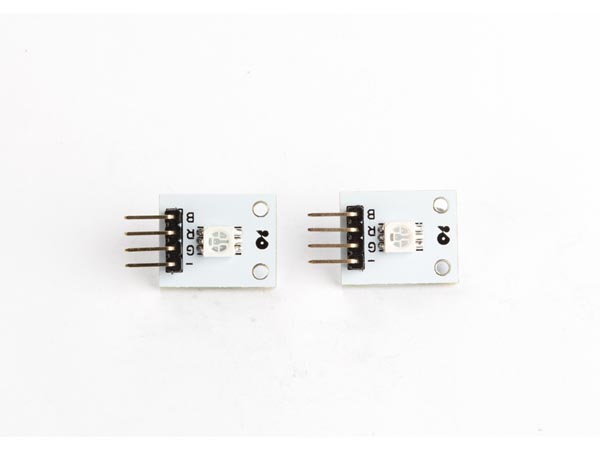

3 COLOR RGB SMD LED MODULE (2 pcs)

https://electronics123.odoo.com/web/image/product.template/11812/image_1920?unique=f6ceb9f
(0 review)

SKU : WPM318
Quantity on Hand : 10
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WPM318

5.25 5.25 USD 5.25

5.25

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart


Description: This module contains a 5050 RGB LED.

Connect this module to the Arduino PWM outputs to generate a full range of colours.
Warning! This module does not include current limiting resistors! Damage to the LEDs will occur if connected directly to 5 V.

Specifications

  • power dissipation: R 60mW, G 95mW, B 95mW
  • peak forward current (0.1 ms pulse width): 100 mA for each colour
  • continuous forward current: 25 mA for each LED
  • max. reverse voltage: 5 V
  • operating temperature: -40 °C to 80 °C
  • dimensions: 28 x 15 x 5 mm
  • common: cathode (-)
  • attention: current has to be limited by using resistors
