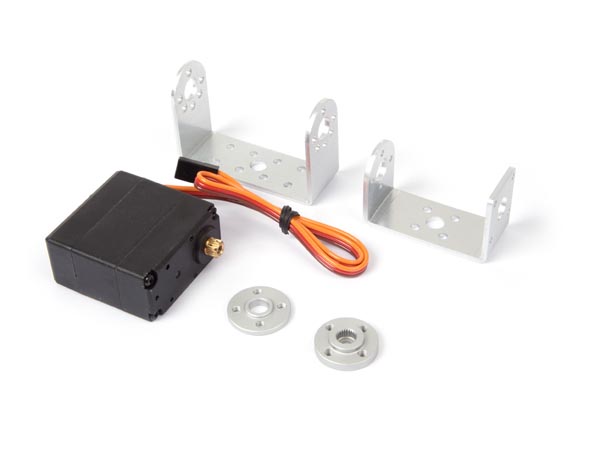

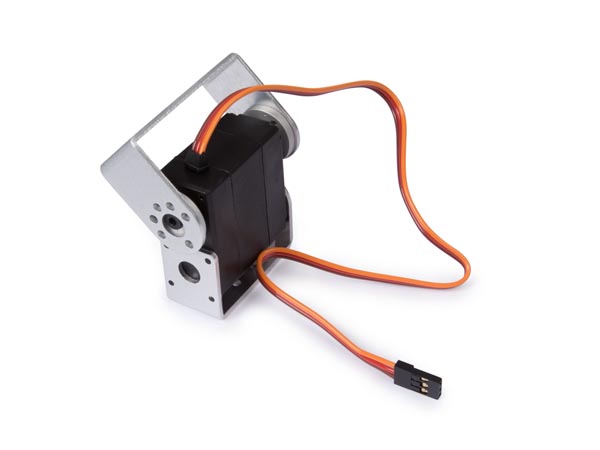

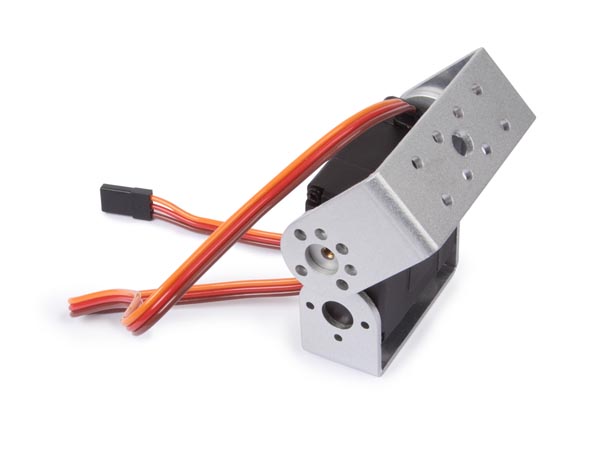

270 degree Robot Digital Double Shaft Servo Kit

(0 review)

SKU : WPK601
Quantity on Hand : 2
Skill Level : Kit - No Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

28.45 28.45 USD 28.45

28.45

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Share

Features:
  • Operating speed (at no load): 0.14 sec/ 60° at 7.2 V
  • Running current (at no load): 100 mA at 7.2 V
  • Stall torque (at lock): 15 kg at 7.2 V
  • Stall current (at lock): 1.5 A at 7.2 V
  • Idle current (at stopped): 5 mA
  • Operating frequency: 50 - 330 Hz
  • Operating angle: 90°/135° (from 1000 to 2000 usec)
  • Neutral position: 1500 usec
  • Dead band width: 3 usec
  • Rotating direction: Counter clockwise (from 1000 to 2000 usec)
  • Pulse width range: From 500 to 2500 usec
  • Overall dimension: 40 x 20 x 40.5 mm
  • Weight: 64 g
  • Connector wire gauge: #28 PVC
  • Connector wire length: 320 ± 5 mm
  • Horn gear spline: 25T/5.80
  • Reduction ratio: 310:1
  • Operating temperature range: -10°C - 50°C
  • Operating voltage: 5 V - 7.2 V
  • Connection: orange = PWM, red = VCC , brown = GND
