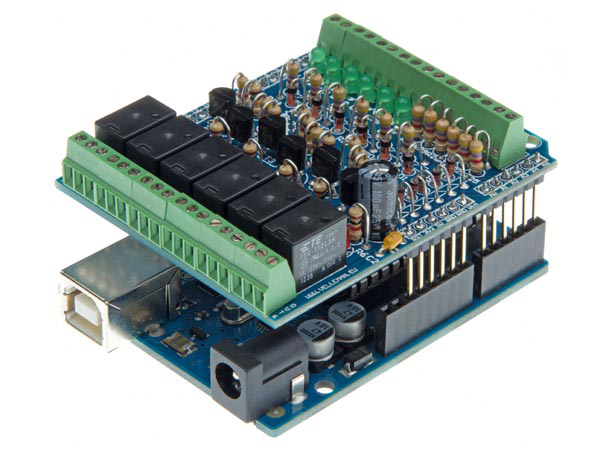

I/O SHIELD FOR ARDUINO

(0 review)

SKU : WPK05
Quantity on Hand : 2
Skill Level : Kit - Basic Soldering Required

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WPK05

$ 28.15 28.150000000000002 USD $ 28.15

$ 28.15

  • WeightMajor
  • WeightMinor

This combination does not exist.

Description: General purpose INPUT - OUTPUT shield for Arduino

Features

  • 6 relay outputs: 0.5A max 30V (*)
  • 6 analog inputs
  • 6 digital inputs
  • downloadable sample sketch
  • stackable design: the shield can be stacked with other shields
  • large user community
  • requires 1 Arduino UNO™ (not included)

Specifications:

  • 1 A (max.) load per output
  • 30 V max. per output
  • uses pin 8 to 13 as outputs, pin A0 to A5 as analog inputs, and pin 2 to 7 as digital inputs
  • dimensions: 68 x 53mm / 2.67 x 2.08"


  • (*) It is required to power the Arduino UNO (not supplied) with a 12V DC 500mA power supply (not supplied) This shield will not work with the Arduino Yún. Use the KA08 or VMA08 with the Arduino Yún.
