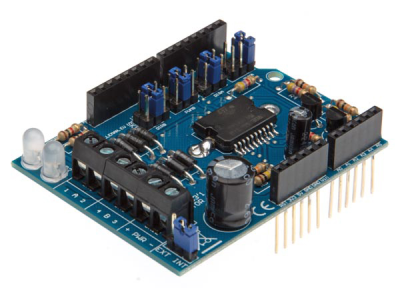

Motor and Power Shield for Arduino

(0 review)

SKU : WPK03
Quantity on Hand : 3
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

18.95 18.95 USD 18.95

18.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Share

Description: Power shield that can drive: relays, solenoids, DC and stepper motors. Also available as completely mounted module VMA03.

Features:

  • 2 channels

  • Choose between an external or internal (Vin) power supply

  • Based on the dual full bridge driver L298P

  • Downloadable sample sketch

  • Stackable design: the shield can be stacked with other shields

  • Large user community

  • Requires 1 Arduino UNO™ (not included)

Specifications:

  • 2.5 A (max.) output current (each channel)

  • 50 V (max.) external power supply input

  • Used pins on an Arduino UNO board can be selected to accommodate for other stacked shields

  • Dimensions: 68 x 53mm / 2.67 x 2.08"
