PAM8610 DIGITAL POWER AMPLIFIER MODULE 2 x 10 W

https://electronics123.odoo.com/web/image/product.template/12209/image_1920?unique=c235331
(0 review)

SKU : WPI446
Quantity on Hand : 6
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WPI446

10.15 10.15 USD 10.15

10.15

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

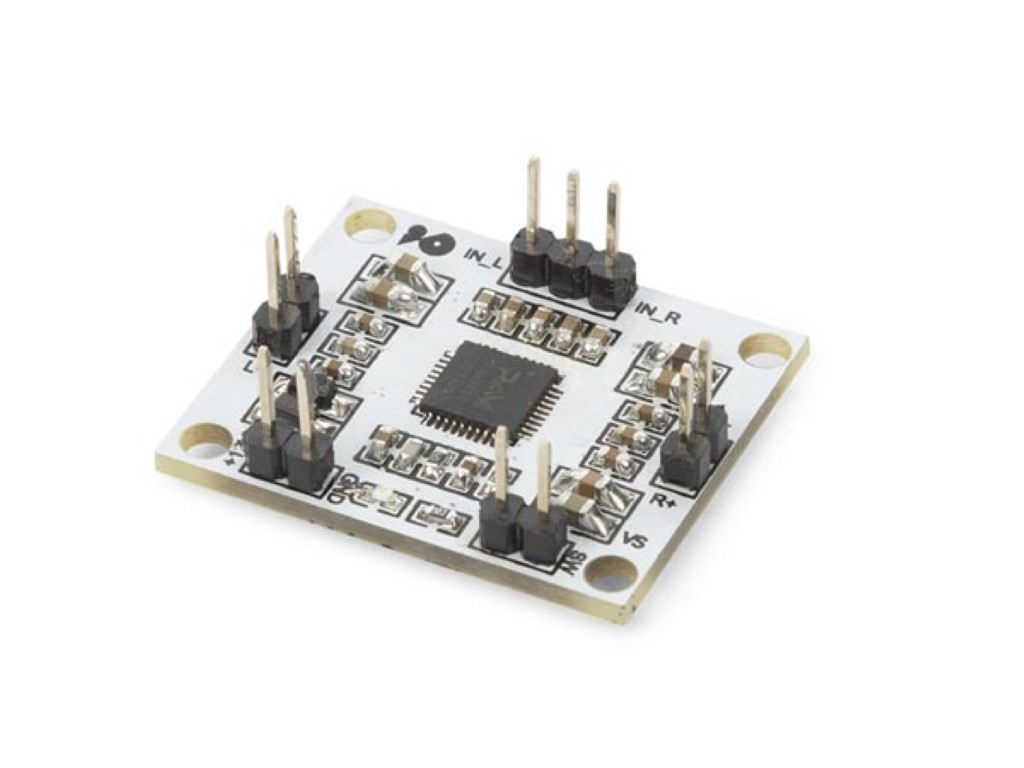

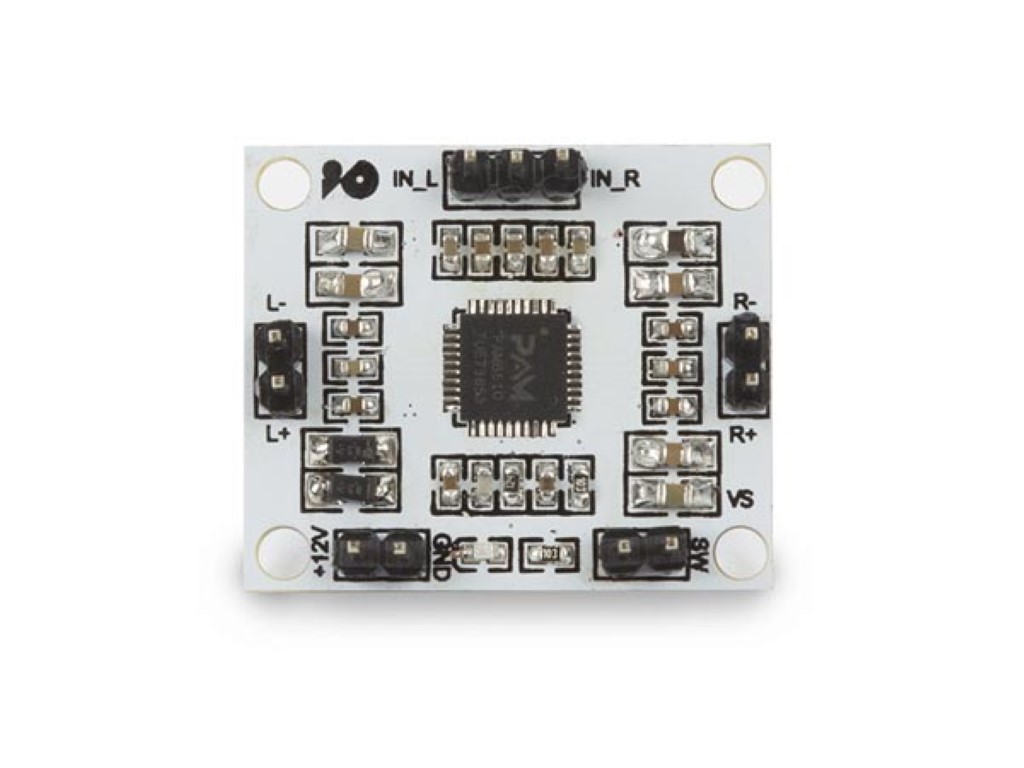

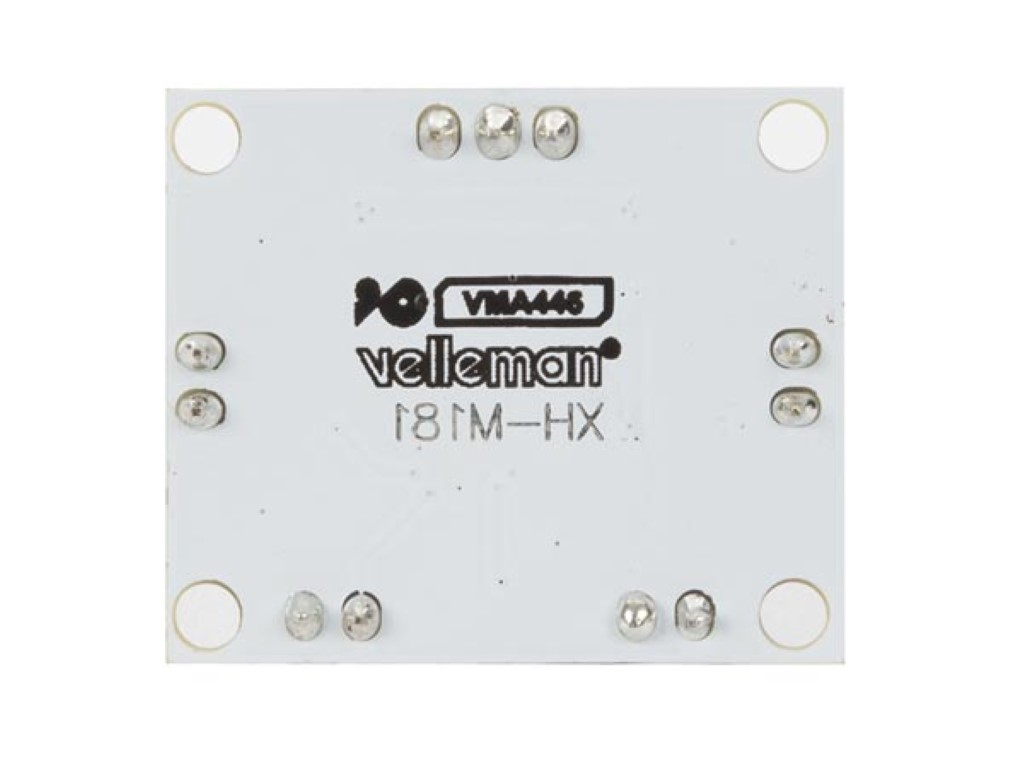

Description: This module (PAM8610) is a 10 W (per channel) stereo Class-D audio amplifier with DC volume control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The 32 steps DC volume control has a +32 dB to -75 dB range.

  • 10 W @ 10% THD/channel output into an 8 Ohm load at 13 V
  • low noise: -90 dB
  • over 90% efficiency
  • 32 step DC volume control from -75 dB to + 32 dB
  • shutdown/mute/fade function
  • over current, thermal and short-circuit protection
  • low THD+N
  • low quiescent current
  • pop noise suppression

Features

  • low noise: -90 dB
  • 32 step DC volume control from -75 dB to + 32 dB
  • Specifications
  • supply voltage (Vdd): 7 to +15 V
  • input voltage range (Vi):
  • mute, Vref, volume, fade: 0 to +6.0 V
  • SD: -0.3 to Vdd
  • RINN, RINP, LINN, LINP: -0.3 to +6.0 V
  • junction temperature range (Tj): -40 to +125 C
  • output power @ 8 Ohm: 10 W


Operational properties

  • Instruction manual languages English
  • Coding skill level 2
  • Electronics skill level 2
  • Mechanics skill level 1
  • Soldering skill level none


Product basic info

  • Colour unit Light grey
  • Weight unit 11 g
  • Additional colour Black
