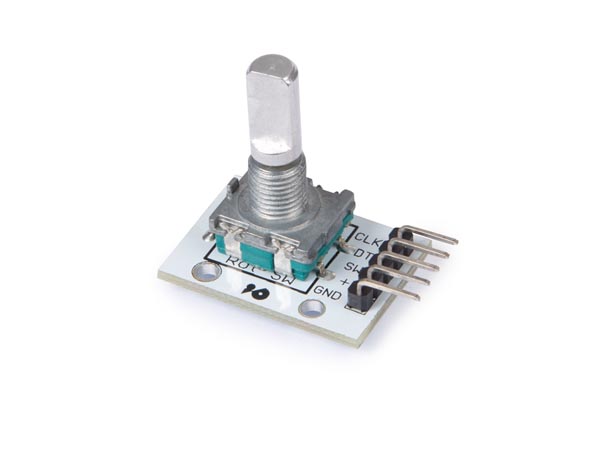

Digital Rotary Encoder Module
SKU : WPI435
Quantity on Hand :
1
Skill Level : Assembled and Tested
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: A rotary encoder is an input device that indicates the rotating direction and how much the knob has been rotated. A rotary encoder is useful for for stepper and servo motor control.
Features:
Flat top
Push-button capability
Unlimited Rotations
Pins are right-angle to the knob, but you can connect them to a breadboard using male-female jumper wires
standard pin spacing: 2.54 mm (0.1")
Specifications:
working voltage: 0-5 V
type: incremental encoder
Material: PCB + brass
Cycles per revolution (CPR): 20
dimensions: 26 x 19 mm
weight: 10 g
