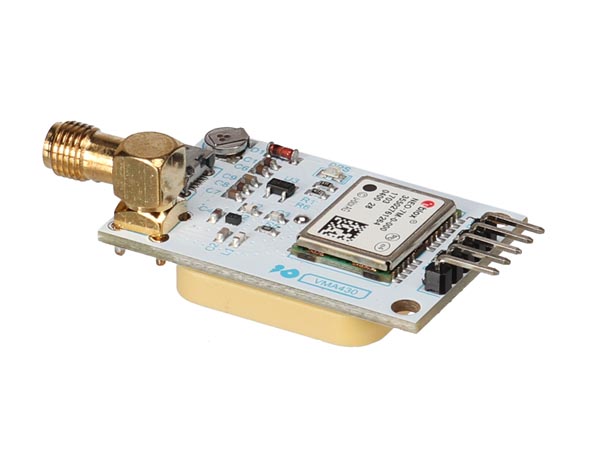

GPS Module U-Blox Neo-7M for Arduino
(0 review)

SKU : WPI430
Quantity on Hand : 1
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


33.25 33.25 USD 33.25


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: The NEO-7 series of standalone GNSS modules is built on the exceptional performance of the u-blox 7 GNSS (GPS, GLONASS, QZSS and SBAS) engine. The NEO-7 series delivers high sensitivity and minimal acquisition times in the industry proven NEO form factor.


  • U-BLOX NEO-7N module, compact and excellent performance

  • parameters can be set via serial port and saved in EEPROM

  • with SMA interface, you can connect a variety of antenna, strong adaptability

  • compatible with 3.3 V / 5 V level for easy connection to a variety of microprocessor systems

  • back-up rechargeable battery on board

  • with micro USB, no need for USB-TTL tools

  • with TTL interface

  • onboard ceramic antenna

  • sample code:

  • evaluation software (U-Center) available for download


  • supply voltage: 3.3 to 5 VDC (or by USB cable)
  • connections: VCC (+5 V), GND (ground), TX, RX, PPS (time pulse)
  • default baud rate: 9600 baud
  • dimensions: 4 x 2.5 x 1.5 cm
  • weight: 15 g

Documentation and Downloads
