CAMERA MODULE WITH 2 IR LIGHTS FOR RASPBERRY PI

https://electronics123.odoo.com/web/image/product.template/11965/image_1920?unique=234b0a0
(0 review)

SKU : WPI408
Quantity on Hand : 1
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WPI408

34.95 34.95 USD 34.95

34.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

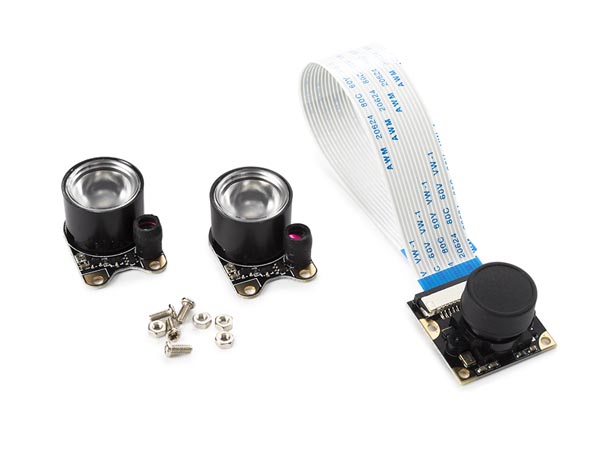

Description: If you want to add a camera to your Raspberry Pi board, but also want night vision to see in the dark, then this module is your solution! The 2 IR light boards with a built-in light sensor can be connected to the central camera module by using the supplied screws. The IR light will turn on when the build-in sensors will detect limited light in the area. Plug-and-play, tiny size, and 5 megapixels to stream in 1080p!

Features

  • Embedded removable IR-CUT filter, eliminating color distortion in the daylight

  • Comes with infrared LED, supports night vision

  • 4 screw holes to fix the IR lights

  • Compatible with all Raspberry Pi Boards

Specifications

  • sensor: OmniVision OV5647

  • still resolution: 5 megapixels

  • video modes: 1080p @ 30fps - 720p @ 60 fps - 640x480 @ 60/90 fps

  • sensor resolution: 2592 x 1944 pixels

  • sensor image area: 3.76 x 2.74 mm

  • full frame SLR lens equivalent: 35 mm

  • focal length (adjustable): 3.6 mm

  • field of view (FOV): 130 degrees

  • aperture (F): 1.8 mm

  • S/N ratio: 36 dB

  • dynamic range: 67 dB @ 8x gain

  • dimensions: 22 x 25 x 15 mm (0.87 x 0.99 x 0.6")

  • weight: 3 g

  • IR lights (2): 3.3 V, fits on camera with 2 x 2 screws (included)


Documentation and Downloads
