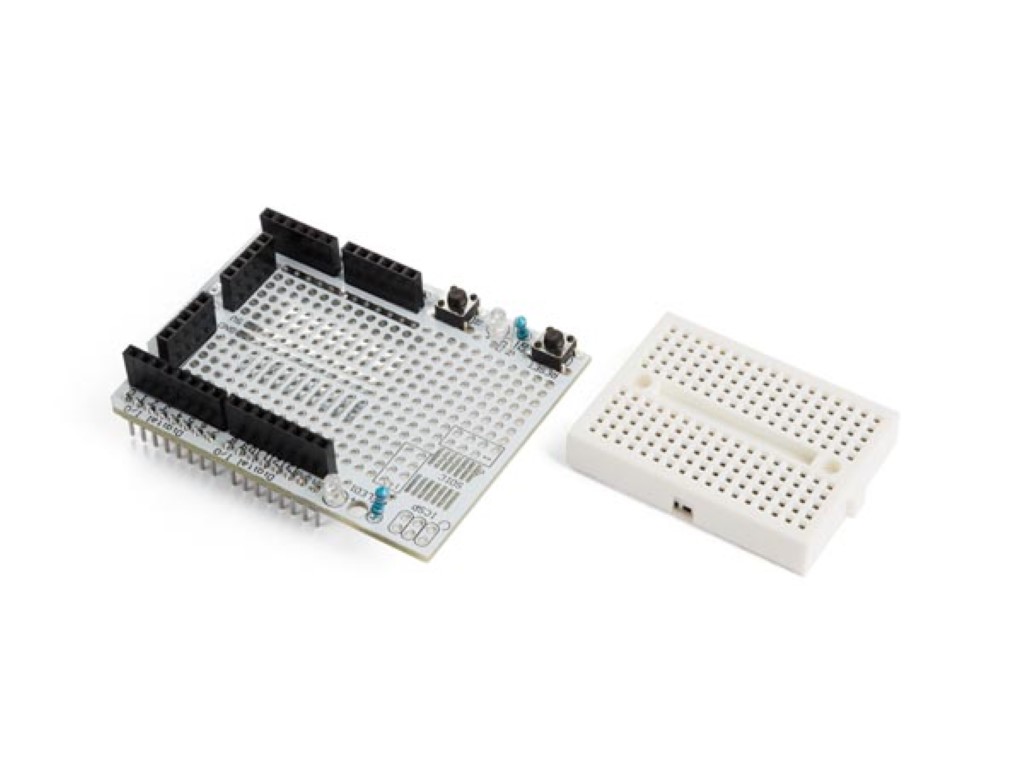

Protoshield with mini breadboard for Arduino Uno, design your own circuits

https://electronics123.odoo.com/web/image/product.template/12215/image_1920?unique=1f51d19
(0 review)

SKU : WPB201
Quantity on Hand : 5
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

7.25 7.25 USD 7.25

7.25

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: The ProtoShield makes it easy for you to design custom circuits. You can solder parts to the prototyping area to create your project, or use it with the small solderless breadboard to quickly test circuit ideas without having to solder. It has extra connections for all of the Arduino® I/O pins, and provides space to mount through-hole and surface mount.

Features:

Educational: Discover the fascinating world of Whadda soldering kits and learn the basics of electronics through engaging projects. The kits offer step-by-step instructions and clear explanations, allowing both beginners and experts to learn and experiment. Creativity: Give space to your imagination and create unique electronic projects with the Whadda soldering kits. Unleash your creativity and build something that is truly yours!

  • Made in Belgium : Whadda is a unique brand from Belgium's Velleman Group that offers DIY projects for hobbyists or makers who want to immerse themselves in electronics, programming and mechanics.
  • STEM project: Develop and improve your STEM skills and acquire the knowledge, skills and experience needed to face the technological challenges of the future with this educational kit. This educational kit will trigger a number of processes such as problem-solving, investigative and creative thinking.
  • Perfect for young and old: With this experiment kit, children and adults with little or no prior knowledge can take their first steps into the exciting world of electronics and advanced users can deepen their knowledge.

- The kit is ideal for youngsters and adults aged 9 to 99! However, children under 14 must be accompanied by an adult.

- To make this kit, you will need some basic tools (not included): a soldering iron or station, solder tin and pliers. Another practical tool is an anti-static soldering mat.

Specifications:

  • 1.0 Arduino Pinout
  • reset button
  • free to use button + LED circuit
  • ICSP connector location
  • 14 pin SMD footprint
  • 20 pin through-hole footprint
  • 170 holes self-adhesive breadboard included
  • compatible with: Leonardo, Uno, Mega, Classic

Operational properties:

  • Instruction manual languages English
  • Coding skill level none
  • Electronics skill level 1
  • Mechanics skill level 1
  • Soldering skill level none

Product basic info:

  • Colour unit White
  • Width unit 7.8 cm
  • Weight unit 52 g
  • Height unit 15.5 cm
  • Depth unit 3.8 cm
