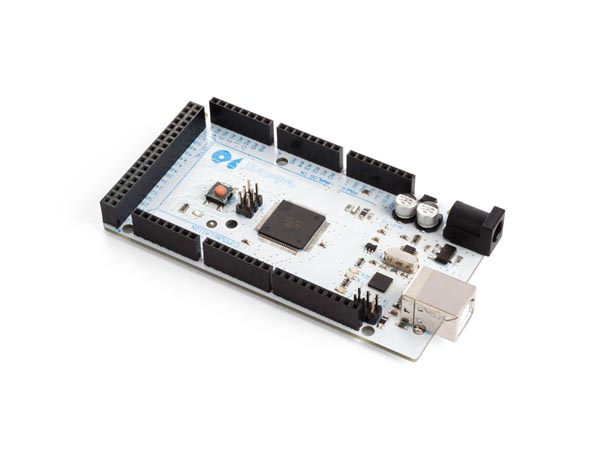

ATmega2560 MEGA DEVELOPMENT BOARD

https://electronics123.odoo.com/web/image/product.template/11716/image_1920?unique=aeadfa4
(0 review)

SKU : WPB101
Quantity on Hand : 5
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WPB101

24.95 24.95 USD 24.95

24.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart


Description: The VMA101 (Arduino® Compatible) Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.

Features:

  • 100% compatible with Arduino® MEGA2560

Specifications

  • microcontroller: ATmega2560
  • operating voltage: 5 VDC
  • input voltage (recommended): 7-12 VDC
  • input voltage (limits): 6-20 VDC
  • digital I/O pins: 54 (of which 15 provide PWM output)
  • analogue input pins: 16
  • DC current per I/O pin: 40 mA
  • DC current for 3.3 V pin: 50 mA
  • flash memory: 256 kB of which 8 kB used by bootloader
  • SRAM: 8 kB
  • EEPROM: 4 kB
  • clock speed: 16 MHz
  • length: 112 mm
  • width: 55 mm
  • weight: 62 g

Documentation and Downloads
