Small Brightdot Pack

(0 review)

SKU : WMW102
Quantity on Hand : 1
Skill Level : Component or Part

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

12.95 12.950000000000001 USD 12.95

12.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Share

Description: It's time to get creative with LEDs thanks to the BrightDot wearable collection! BrightDots are small and wearable modules with one or more LEDs that need to be controlled by an Arduino compatible development board.

The entire collection includes a series of diverse modules with addressable RGB LEDs that can be controlled individually. We also developed a unique Arduino compatible that you can use to create something bright & wearable that's also smart.

This set includes 5 singleton BrightDots. Each PCB is super thin and includes gold plated contacts with 6 sewing holes of 1.22mm (0,04 inch). Also, all models have backup lines to ensure that one broken LED does not affect the others.

Every LED is controlled by 3 wires (power, ground & data) and can be connected via these wires to the next LED, creating a big string of LEDs. You can solder these LEDs in electric circuits, or sew them into clothing, onto backpacks, onto shoes, etc!

Features:

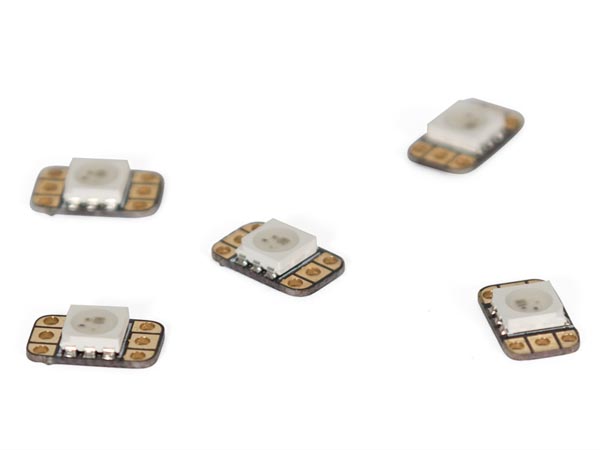

  • 5 x Singleton BrightDots
  • Integrated backup line (this ensures that one broken LED does not affect the next LED)
  • Each PCB has gold plated contacts with 6 sewing holes of 1.22 mm
  • Solder or sew them!

Specifications:

  • Dimensions (L x W): 11 x 6.5 mm (0,43 x 0,25 inch)
  • Max. current consumption: 60 mA / LED at full brightness
  • Power supply: 3.3 V - 5 V
  • PCB thickness : 2.1 mm (0,08 inch)
  • Required: or other Arduino compatible development board
