EARTH LISTENER

https://electronics123.odoo.com/web/image/product.template/12220/image_1920?unique=60f8f42
(0 review)

SKU : WMMI211
Quantity on Hand : 1
Skill Level : Kit - No Soldering Required

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

152.85 152.85 USD 152.85

152.85

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: Ever wondered how good the air quality is in your living room? Or do you need proof of why you fall asleep in a non-ventilated meeting room after 3 hours? Look no further! This DIY experimental kit has all the answers!

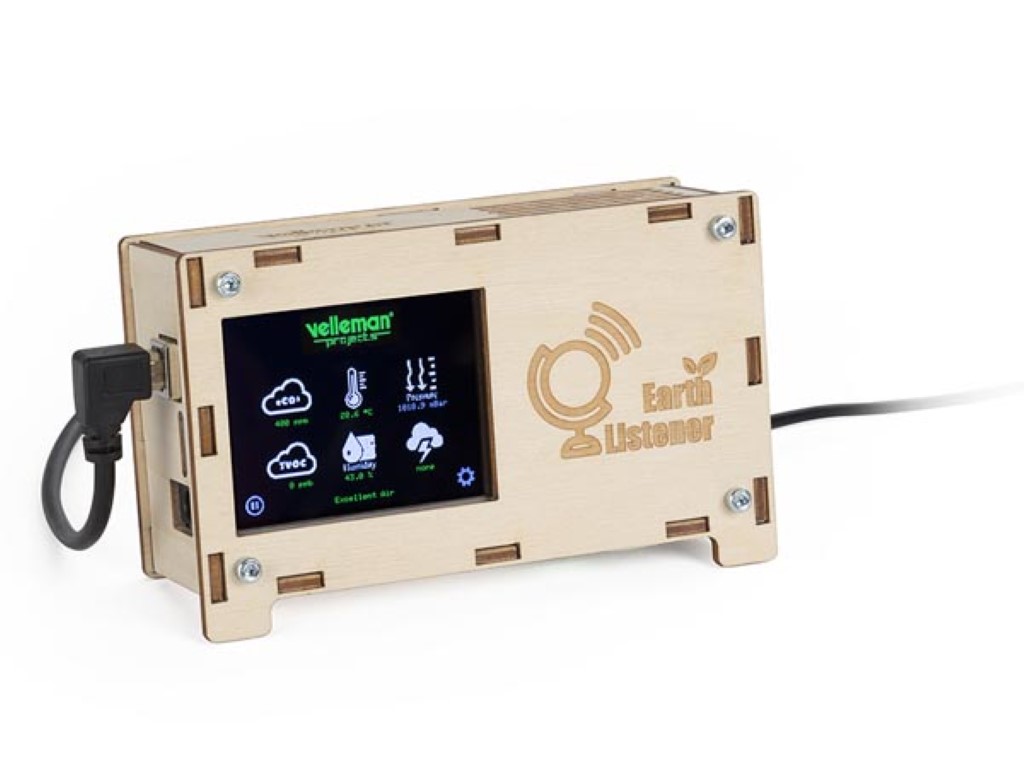

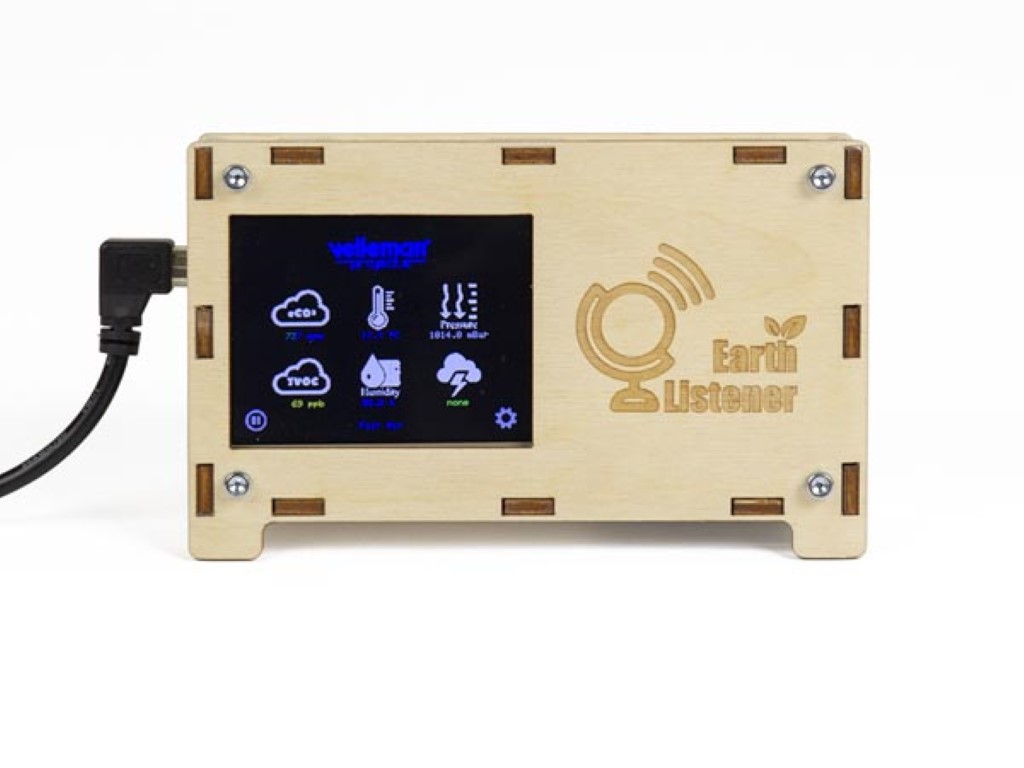

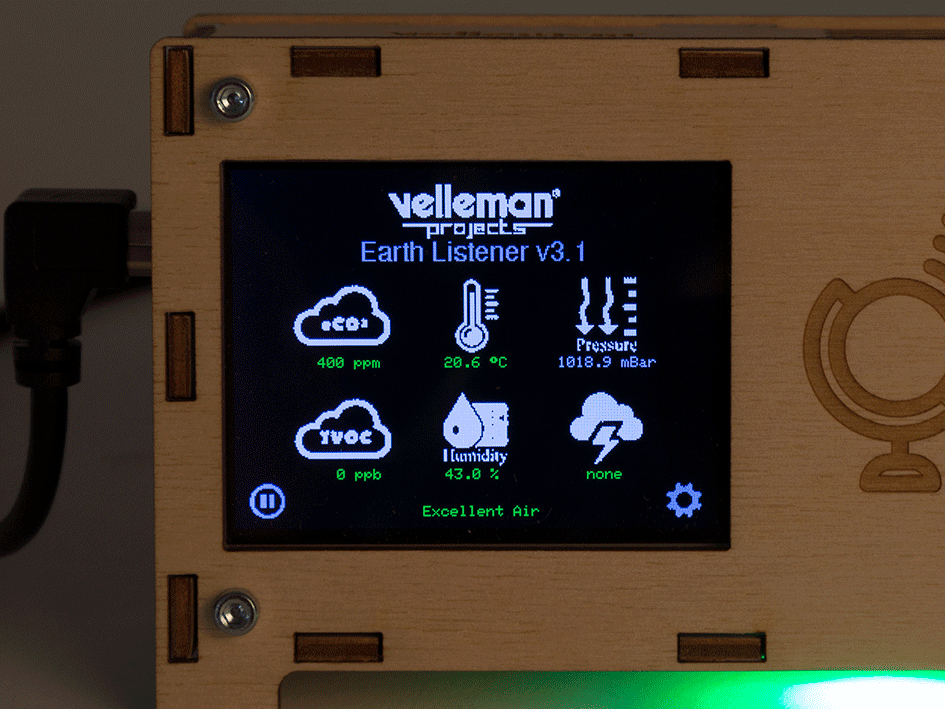

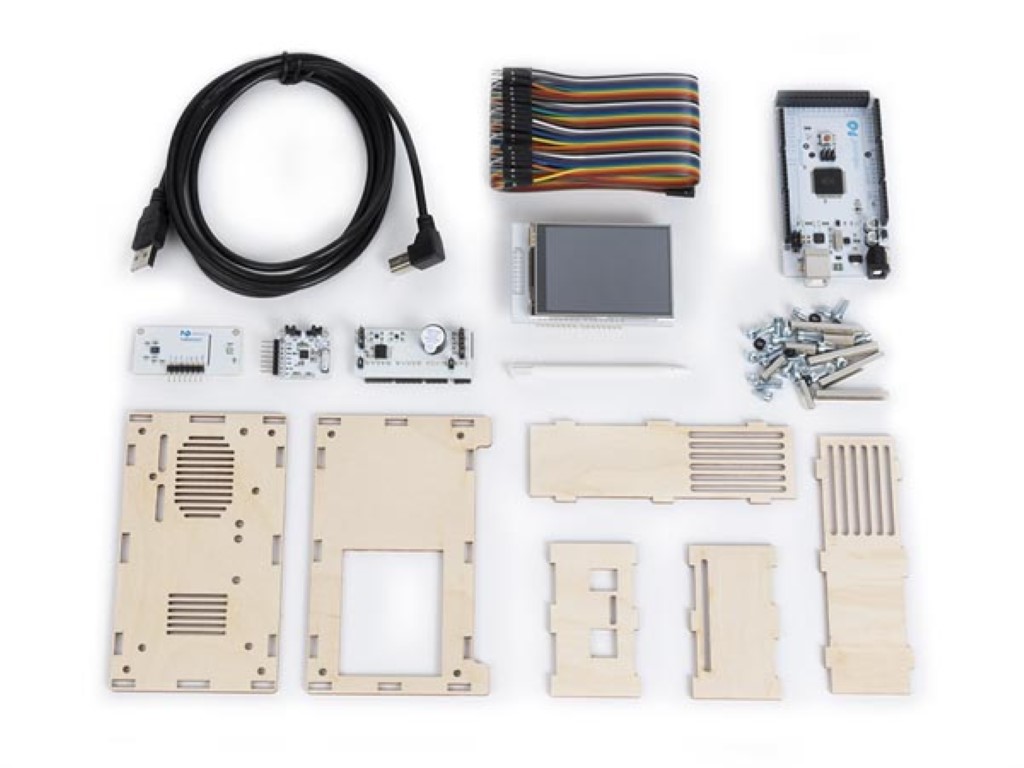

The Earth Listener is an Arduino based sensor device that reads multiple environmental values to indicate the air quality. This kit is assembled in 15 minutes and you don't need a soldering iron! Just connect the parts and wires, put everything in the case and connect it to a 5V USB socket. The Mega development board is pre-programmed and shows eCO2, TVOC (particles in the air), barometric pressure, temperature and humidity values onto the TFT touchscreen. To top thing off, the Earth Listener also contains a lightning detection sensor. If lightning (or electronic discharge) is detected, the Earth Listener will give an alarm tone and log how far the lightning is located. Since everything is open source, you can add an additional 6 sensors to the Earth Listener via the sensor shield. Logging is possible via the micro SD card (not included).


The Earth Listener needs a burn-in time of 48 hours and at least 20 minutes of logging before the eCO² and TVOC values are stable.

This experimental kit is for indicative purposes only. Values should be interpreted while considering the environmental situation. Keep your living space well ventilated.

Features:

  • measures the environmental values eCO2, TVOC, barometric pressure, temperature and humidity values
  • detects lightning or electronic discharge that are up to 40 km away
  • shows values on a 2.8-inch color touch screen
  • implemented logging function on SD card (SD not included)
  • special designed hardware with pre-programmed software for a plug-and-play, ready-to-use experience
  • open source and fully Arduino based, easy to expand and modify

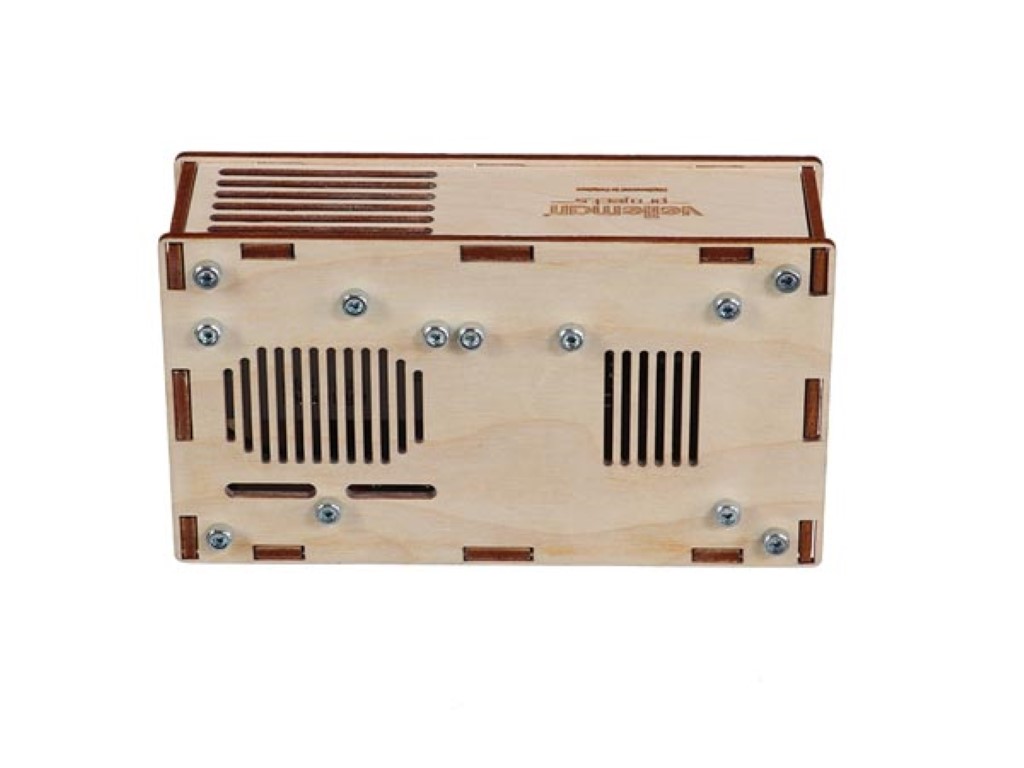

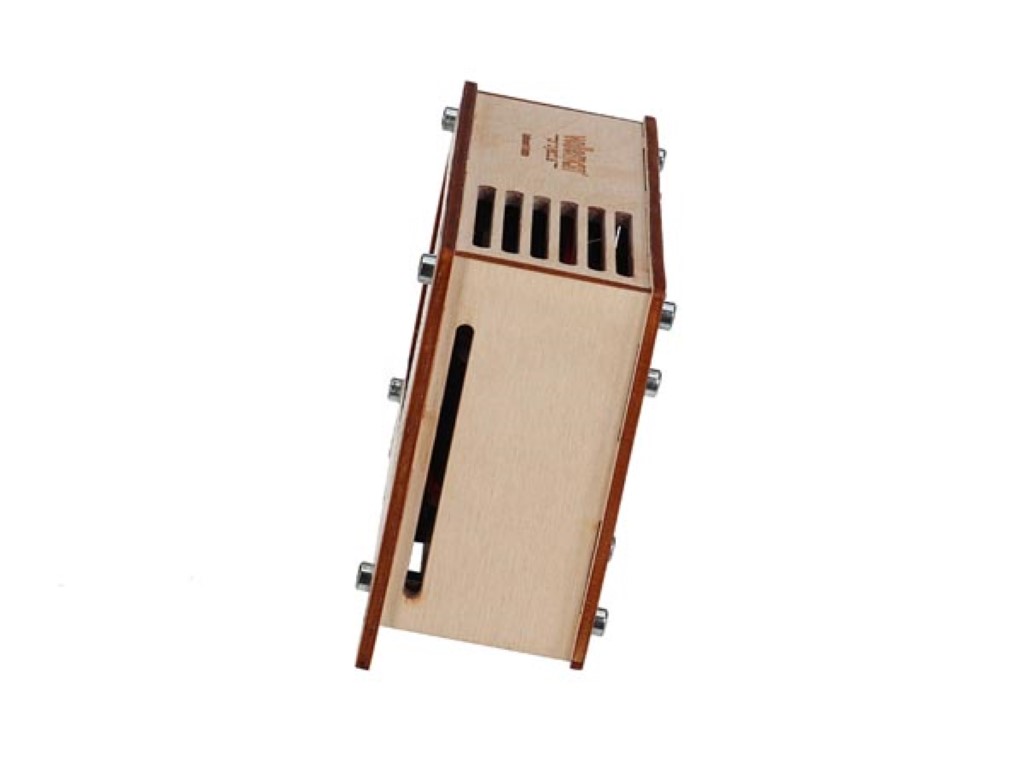

  • stylish wooden enclosure or special edition see-through plexi case (VM211SE)

Documentation and Downloads
