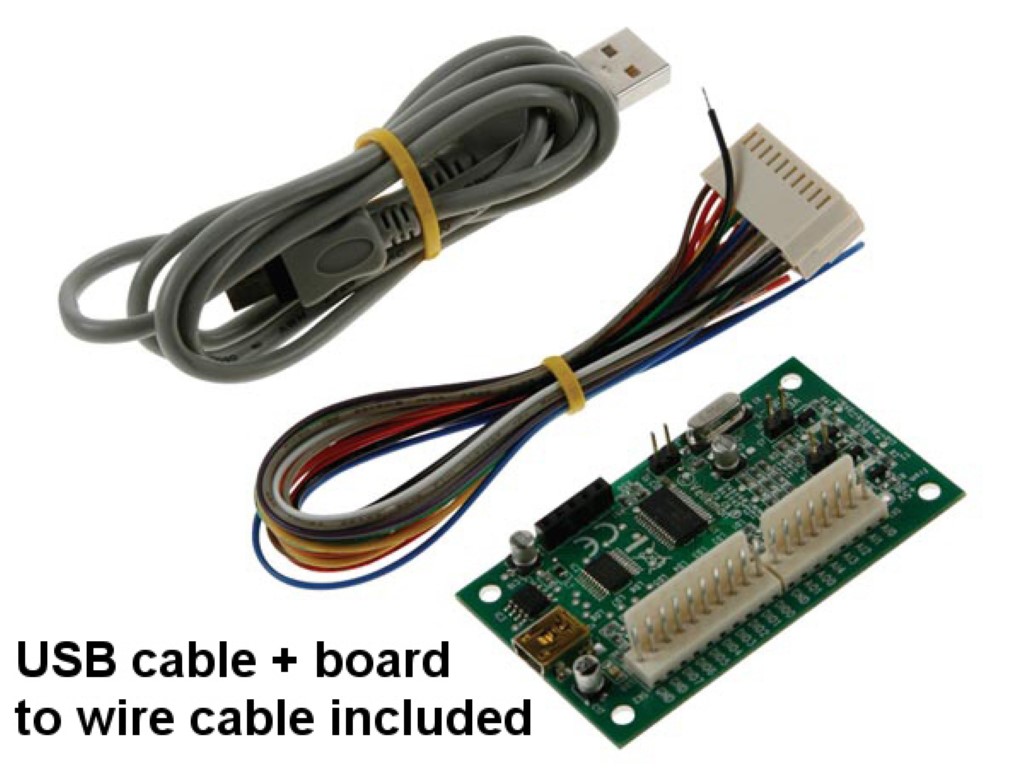

Mini USB Interface Board

https://electronics123.odoo.com/web/image/product.template/5367/image_1920?unique=8e94899
(0 review)

SKU : WMI167
Quantity on Hand : 3
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WMI167

34.95 34.95 USD 34.95

34.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

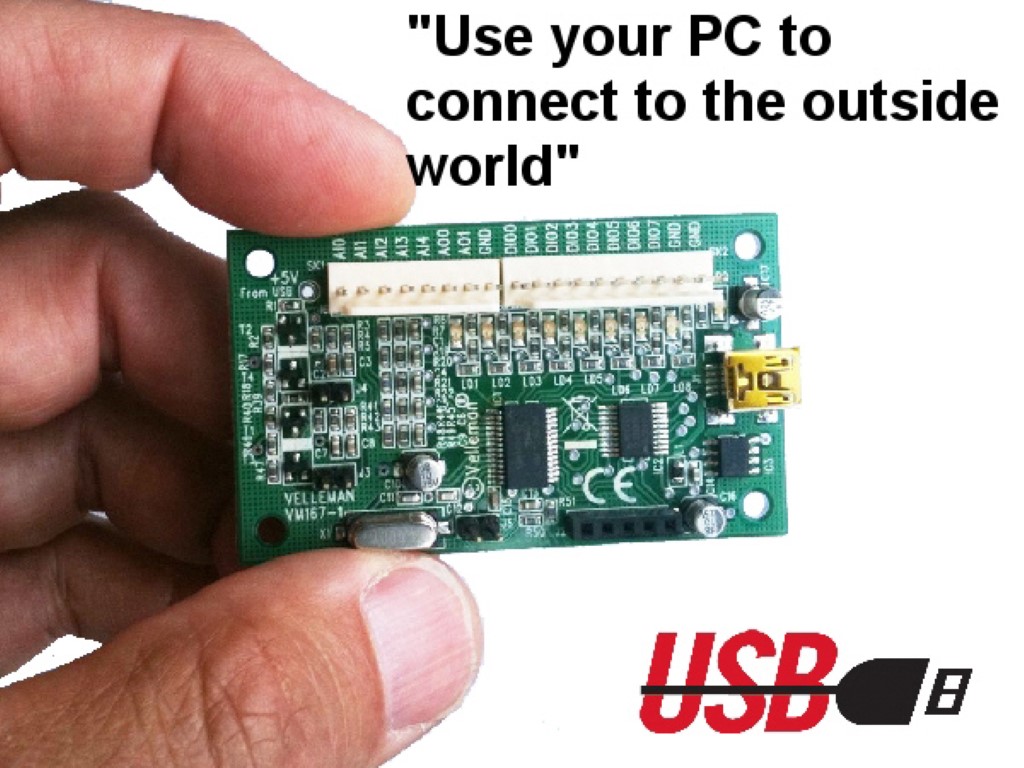

"Use your PC to connect to the outside World"

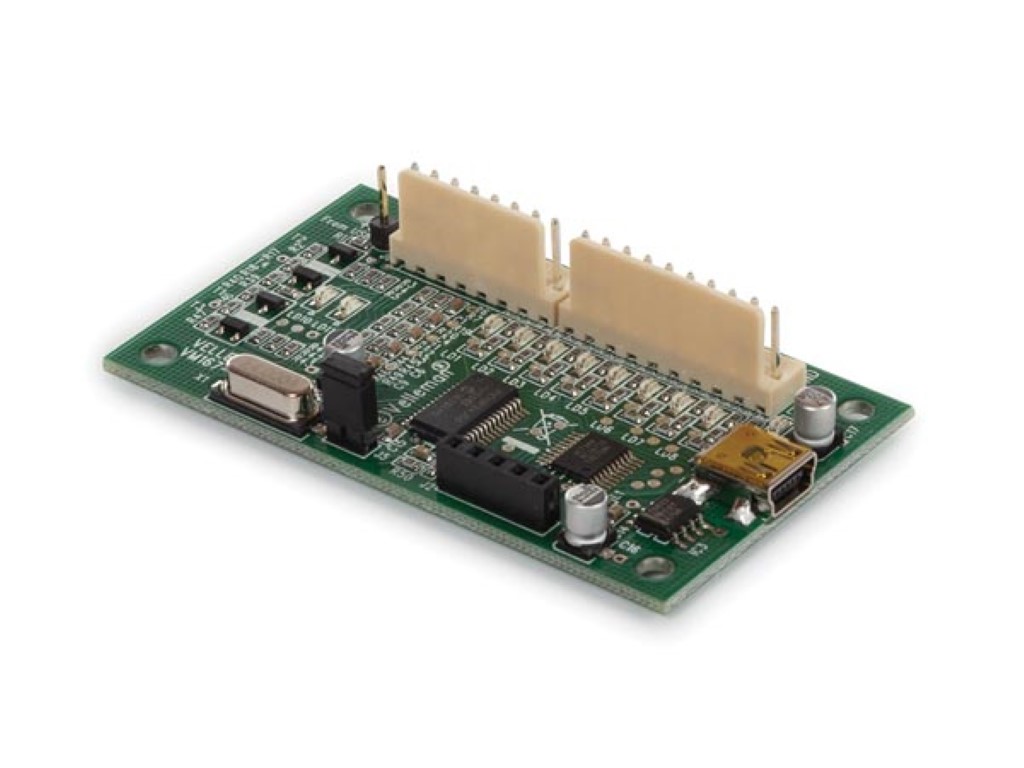

Features:

  • Very Small, universal USB powered & controlled I/O board !
  • Add USB interface to existing equipment
  • 15 inputs / outputs, including analogue inputs / digital inputs/outputs and PWM outputs
  • The number of inputs/outputs can be further expanded by connecting two cards to the PC's USB connectors
  • All communication routines are contained in a Dynamic Link Library (DLL)

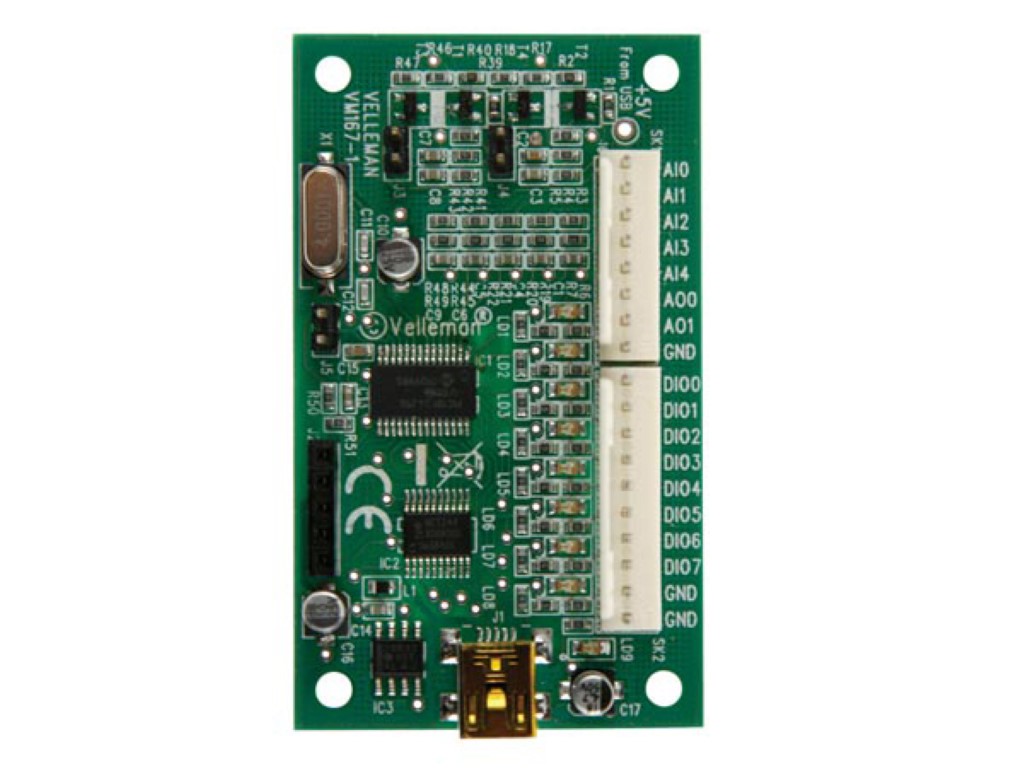

Specifications:

  • 5 x analogue 10 bit resolution inputs: 0…5V / (30K)
  • 8 x digital 5V inputs/outputs with on-board LED indication: Input/output mode is selectable in groups of 4 terminals
  • 1 x 32 bit pulse counter up to 1MHz input frequency
  • 2 x 8 bit 5V PWM outputs: 0 to 100%
  • On-board LED indication for I/O and PWM outputs
  • Output current, PWM: 10mA / Digital outputs: 6mA
  • Up to 2 cards can be connected to one PC
  • USB port: USB 1.1 & 2.0 compatible
  • DLL supports Windows XP, Windows Vista and Windows 7*
  • PWM frequency selection: 2930Hz,11.7kHz or 46.9kHz
  • Command execution time, read:
    • read: 4ms
    • write: 1ms
  • Power consumption through USB port: approx. 50mA

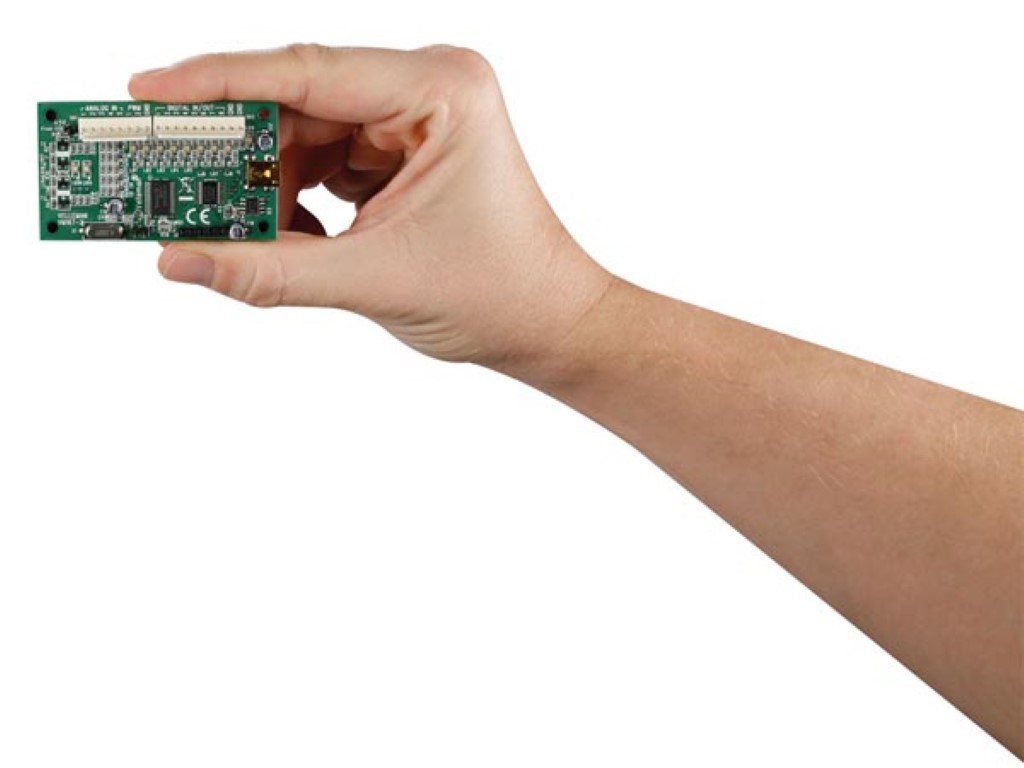

Dimensions:

  • 68 x 40 mm / 2.7 x 1.6"
