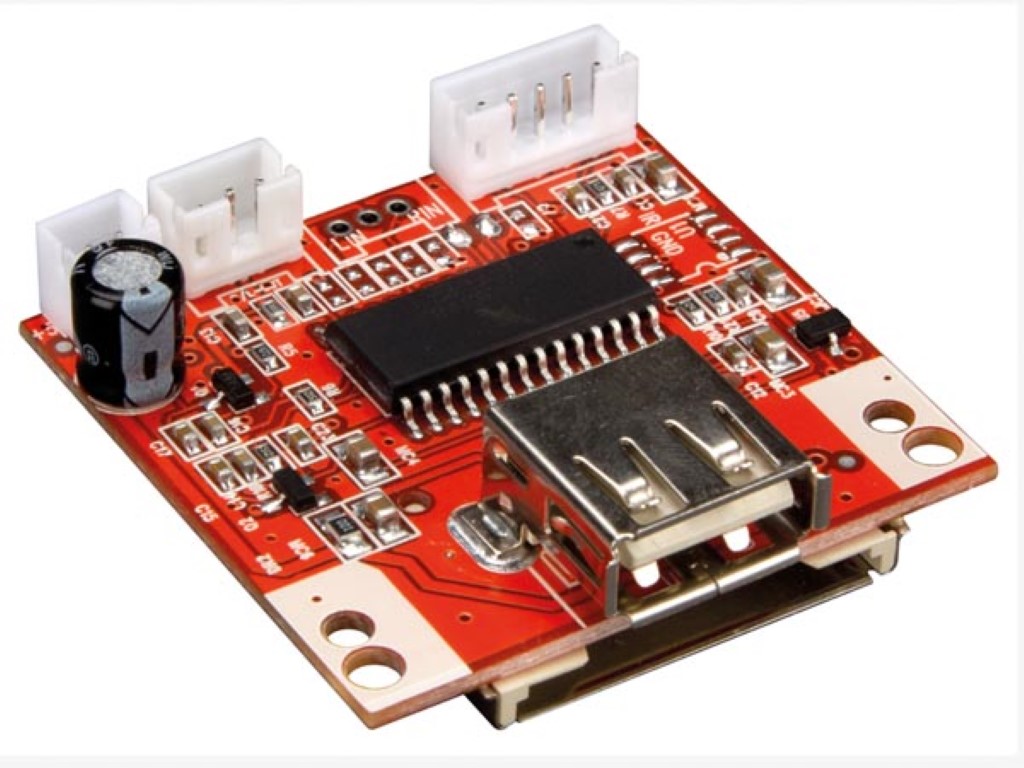

This MP3 jukebox module from Whadda lets you play music, messages, announcements and sounds stored on a USB stick or SD card. The kit is thus ideally suited for model building, as a public address system in airports, stations and shopping malls, as an audio guide in museums, etc. Through the four buttons you choose a next or previous track and can play or pause a song. A handy LED indicator shows whether the music is playing or paused.
+ Easy to use: Use the buttons to select the next or previous track and play or pause your music.
+ LED indicator: Thanks to the LED you can see, whether an MP3 file is paused or playing.
+ Loop function: This handy feature lets you play your favourite music over and over again.
+ Stereo line output: The MP3 jukebox module is compatible with all home or car audio systems.
+ Easy to use: Use the buttons to select the next or previous track and play or pause your music.
+ LED indicator: Thanks to the LED you can see, whether an MP3 file is paused or playing.
+ Loop function: This handy feature lets you play your favourite music over and over again.
+ Stereo line output: The MP3 jukebox module is compatible with all home or car audio systems.
Specifications:
- pushbuttons for 'NEXT'-, 'PREVIOUS'- and 'PLAY/PAUSE'
- LED play/pause indicator
- playback starts at power on
- continuous looping of all tracks
- stereo line level output
- applications:
- make your own MP3 jukebox
- MP3 playback to any domestic or car audio system
- message playback system
- supported file format: mp3 (128kb/s, 192kb/s, 256kb/s, 320kb/s variable bit rate)
- audio output: 500mV/47kOhm stereo line out
- power supply: 5VDC or 9...12VDC/50mA max
- dimensions: 45x40x8mm / 1.77x1.57x0.31"
- hint for automotive use (12V): Put a 68 ohm/1W resistor in series with the (+) of the power supply, to avoid excess dissipation.
4 Connection cables included.
