MP3 JUKEBOX MODULE

https://electronics123.odoo.com/web/image/product.template/10582/image_1920?unique=ac751ef
(0 review)

SKU : WMAH202N
Quantity on Hand : 2
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

WMAH202N

23.95 23.95 USD 23.95

23.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Button-Triggered Sound File Upload Headphone Audio Output Additional Memory Capable

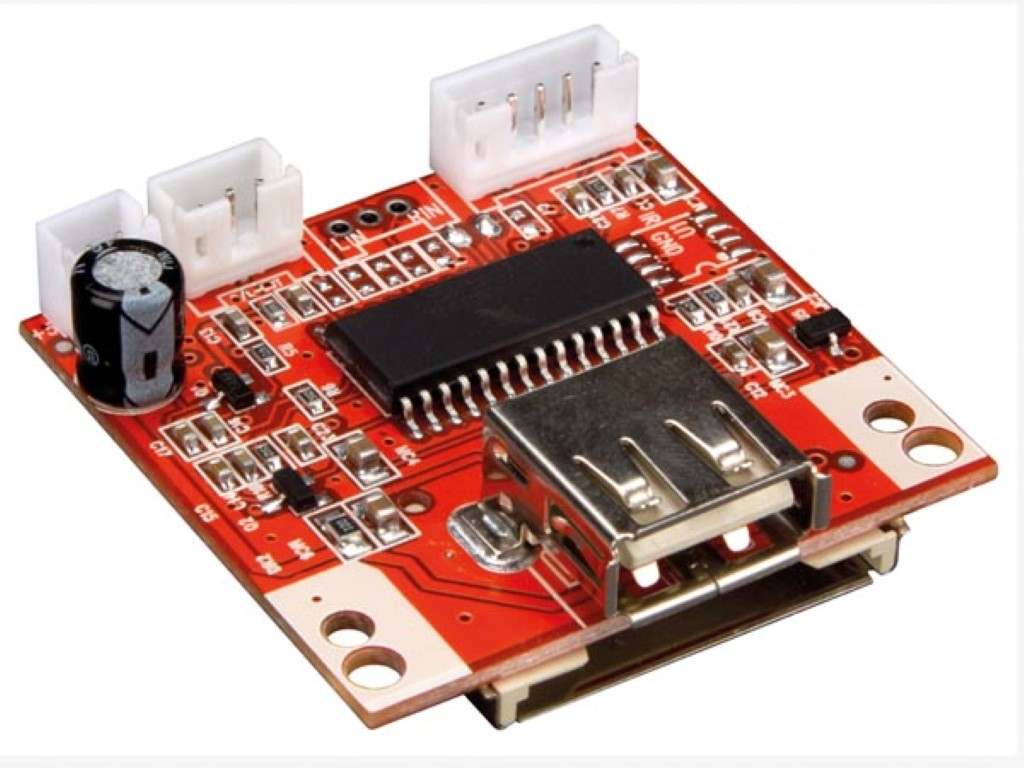

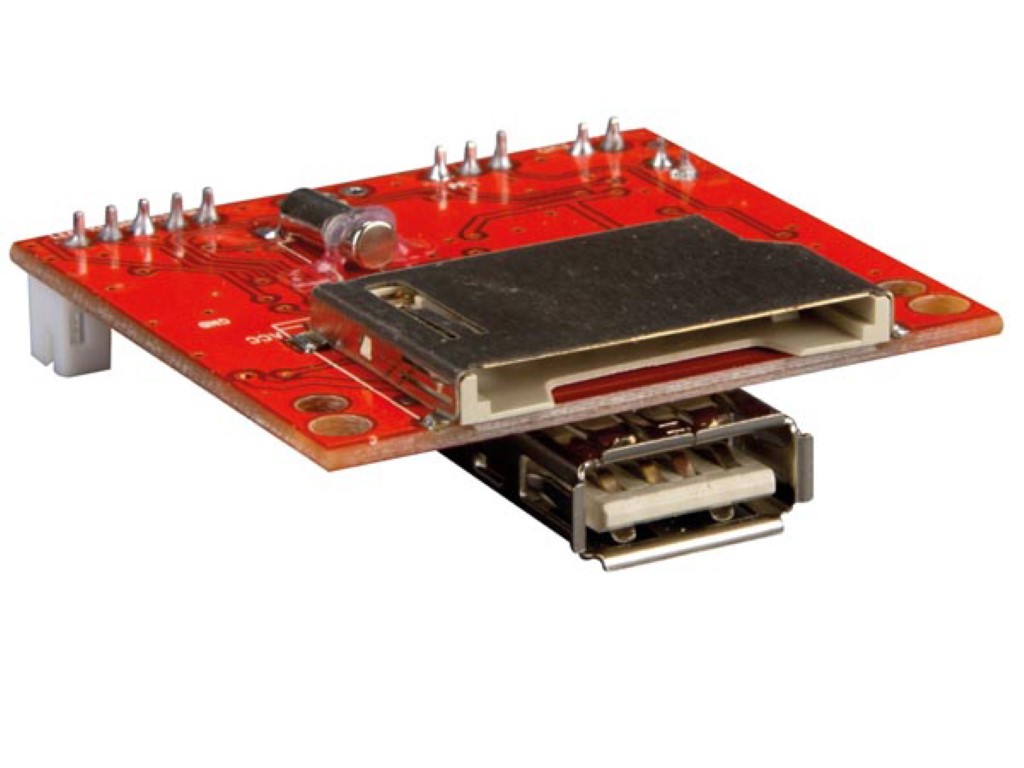

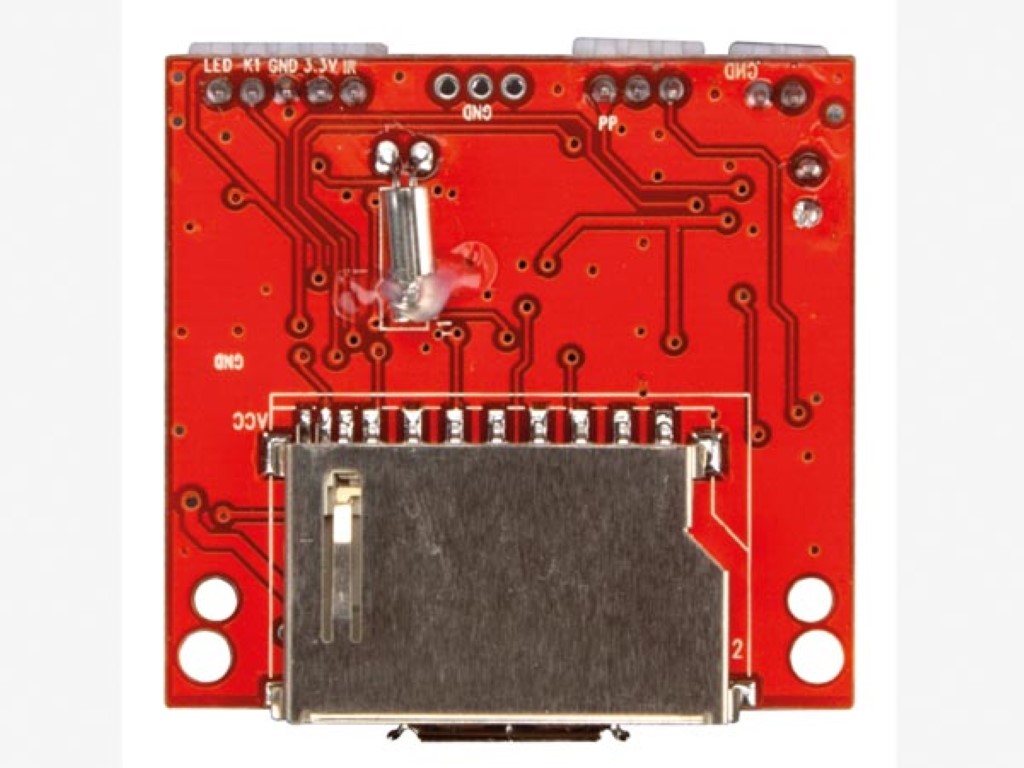

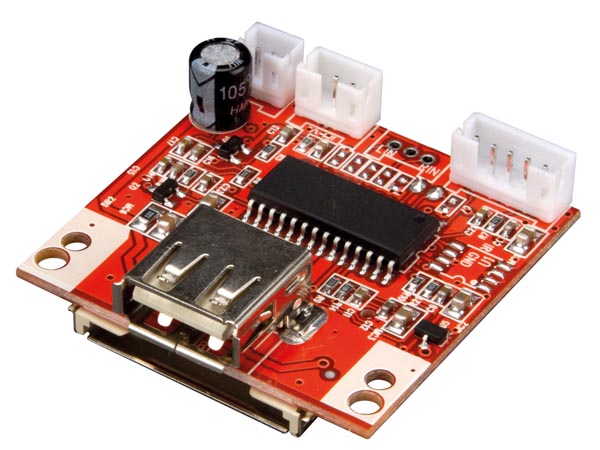

 This MP3 jukebox module from Whadda lets you play music, messages, announcements and sounds stored on a USB stick or SD card. The kit is thus ideally suited for model building, as a public address system in airports, stations and shopping malls, as an audio guide in museums, etc. Through the four buttons you choose a next or previous track and can play or pause a song. A handy LED indicator shows whether the music is playing or paused.

Specifications:

  • pushbuttons for 'NEXT'-, 'PREVIOUS'- and 'PLAY/PAUSE'
  • LED play/pause indicator
  • playback starts at power on
  • continuous looping of all tracks
  • stereo line level output
  • applications:
    • make your own MP3 jukebox
    • MP3 playback to any domestic or car audio system
    • message playback system
  • supported file format: mp3 (128kb/s, 192kb/s, 256kb/s, 320kb/s variable bit rate)
  • audio output: 500mV/47kOhm stereo line out
  • power supply: 5VDC or 9...12VDC/50mA max
  • dimensions: 45x40x8mm / 1.77x1.57x0.31"
  • hintfor automotive use (12V): Put a 68 ohm/1W resistor in series with the (+) of the power supply, to avoid excess dissipation.

4 Connection cables included.
