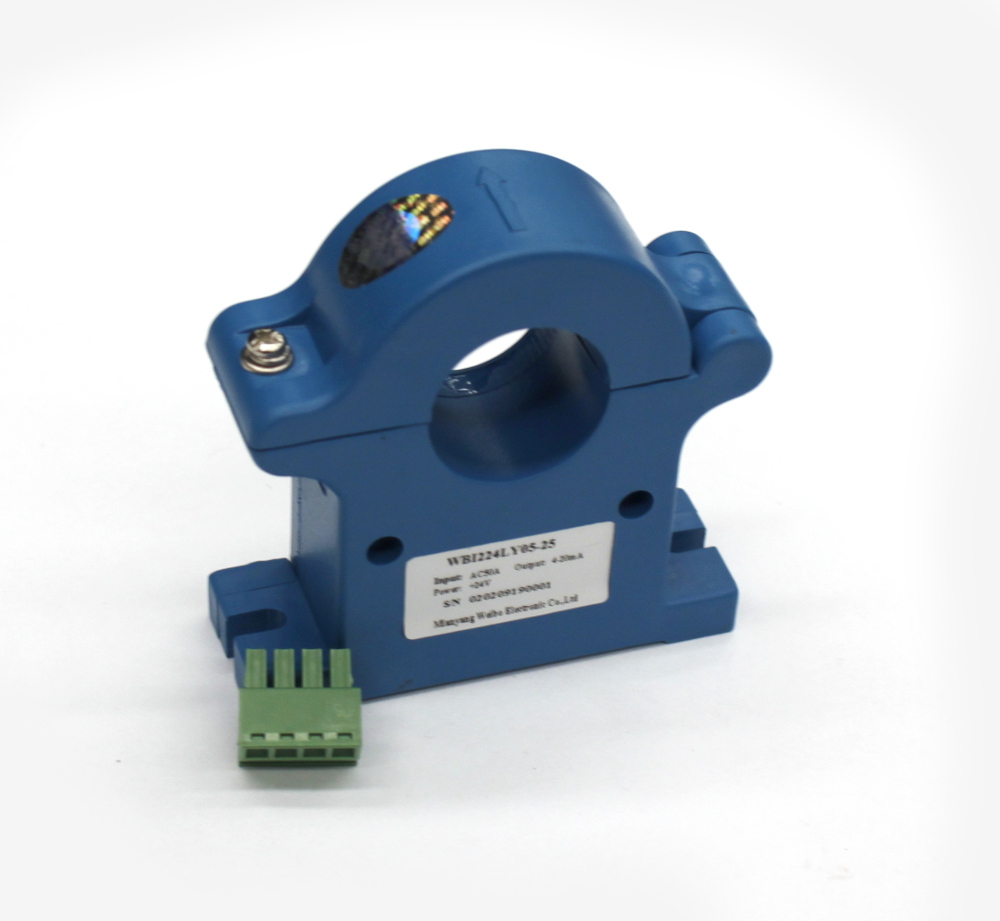

Description: Converts DC input current into a load independent output signal DC 4-20mA. Can be used for monitoring the current in solar cell installations, battery charging/discharging with the 4-20mA can be easily interfaced to a PLC or remote telemetry unit.
The current transducer features total galvanic isolation between input/output, high accuracy, low drifting by temperature, and wide temperature operational range.
Specifications:
Input: 0 to 100 A DC
Output: 4 to 20 mA DC
Thermal Drift: 600ppm
Power Supply: 24 VDC
Accuracy: ≤1%
Isolation (Input/Output): ≥6000 VDC, 1 min
Response Time: <50 ms
Dimensions: Length: 73mm Width: 25mm Height: 74mm 25 mm aperture.
Screw mounting
