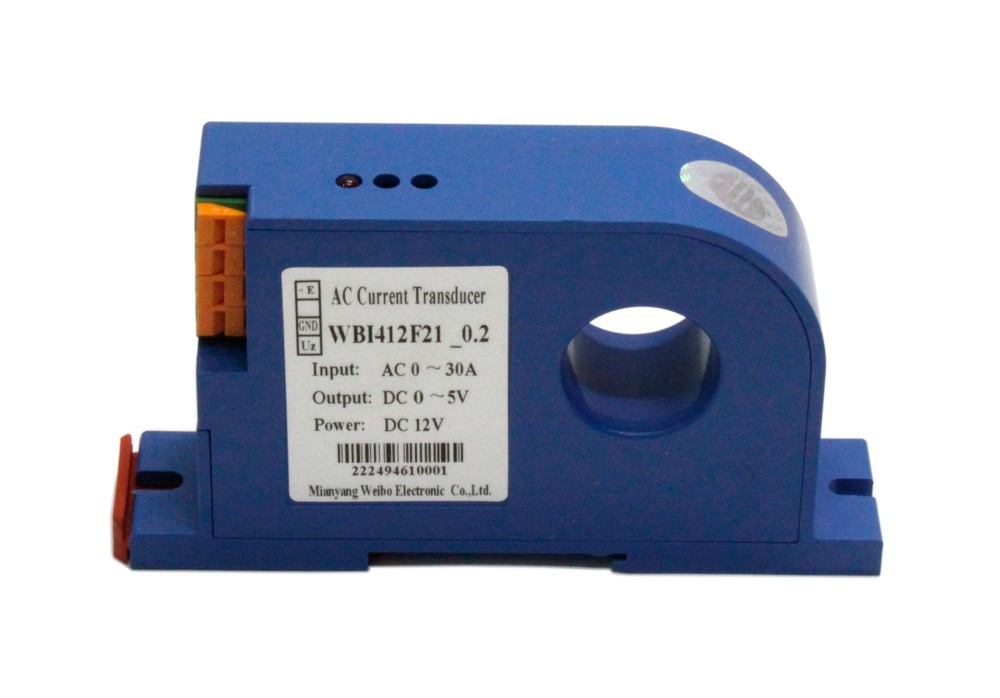

DIN rail mount current transducer presents a 0 to 5V DC signal representing the AC current flowing through a primary conductor. 0 to 30 A primary AC current range.
Converts AC input current into a load independent output signal DC 0 to 5V. Can be used for monitoring the current in motor windings and with the 0 to 5VDC output can be easily interfaced to a data logger PLC or remote telemetry unit.
The current transducer features total galvanic isolation between input/output, high accuracy, low drifting by temperature, and wide temperature operational range.
Features:
- Power supply: 12 VDC
- Input: 0 to 30A AC
- Output: 0 to 5VDC
- Accuracy: ≤0.5%
- Frequency: 25 Hz to 5 kHz
- Isolation (Input/output): ≥2500 VDC, 1 min
- Response time: 300 ms
- Window: 20 mm Diameter
- Mounting: 35 mm DIM rail / Screw
