VOLTAGE REGULATOR SET

https://electronics123.odoo.com/web/image/product.template/11969/image_1920?unique=31f0738
(0 review)

SKU : WCS100
Quantity on Hand : 2
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

VCS100

22.95 22.95 USD 22.95

22.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

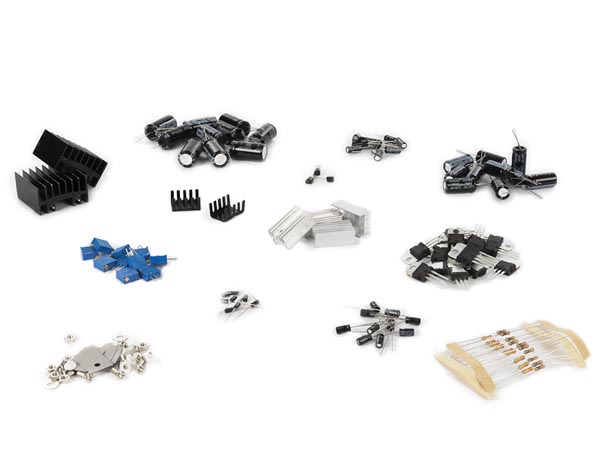

Description: Starter set to build your own voltage regulators; heatsinks, electrolytic capacitors, diodes, screws, and resistors are included.

Features:

  • 3 x voltage regulator L7805 / UA7805 (TO220 package)
  • 3 x voltage regulator L7812 / UA7812 (TO220 package)
  • 3 x voltage regulator L7912 / UA7912 (TO220 package)
  • 3 x voltage regulator L7815 / UA7815 (TO220 package)
  • 3 x voltage regulator L7824 / UA7824 (TO220 package)
  • 3 x voltage regulator 33LPE3 (TO92 package)
  • 3 x voltage regulator LM317 (TO220 package)
  • 10 x electrolytic capacitor radial 1000µF / 50V
  • 10 x electrolytic capacitor radial 470µF / 50V
  • 10 x electrolytic capacitor radial 10µF / 50V
  • 10 x ceramic capacitor 100nF
  • 10 x resistor 10 ohm
  • 10 x resistor 330 ohm
  • 10 x resistor trimmer 470 ohm
  • 10 x diode 1N4007
  • 4 x heatsink for TO220 (25 x 15 x 10 mm)
  • 2 x heatsink for TO220 (35 x 19 x 35 mm)
  • 2 x heatsink for TO220 (15 x 10 x 20 mm)
  • screws and mica's for TO220 heatsinks
  • 1 x Euro hole plastic box (200 x 140 x 48 mm)
