STEREO FM RADIO SHIELD FOR ARDUINO

https://electronics123.odoo.com/web/image/product.template/11719/image_1920?unique=a856c11
(0 review)

SKU : VMA11
Quantity on Hand : 1
Skill Level : Kit - Basic Soldering Required
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

VMA11

14.95 14.950000000000001 USD 14.95

14.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

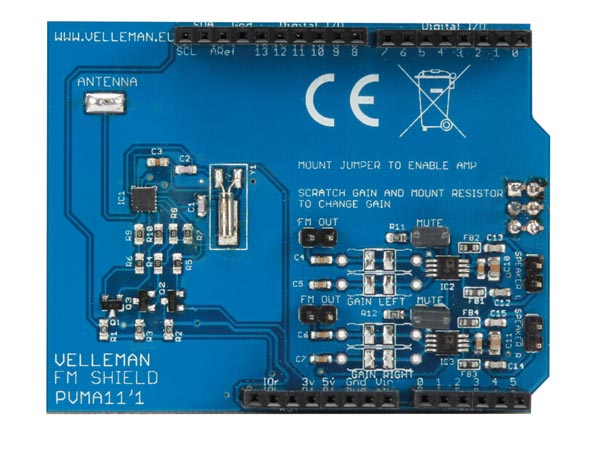

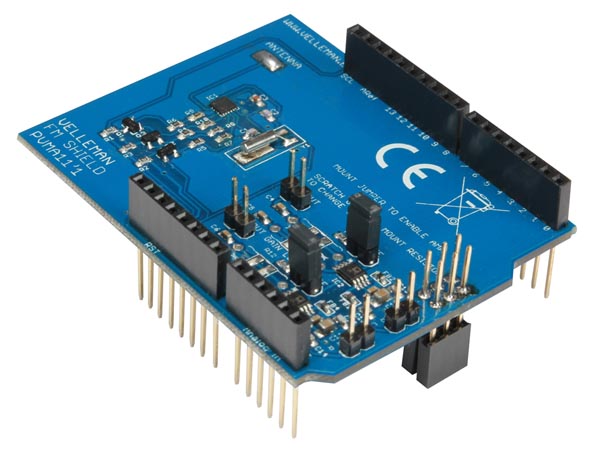

The VMA11 is a radio and RDS receiver combined with a powerful and efficient 2.8 W class D audio amplifier. All of this is designed in the familiar Arduino formfactor. In short, this module is ideal if you want to create your own clock radio or if you want to add FM functionality to your projects!

Features:

  • worldwide FM support
  • RDS/RBDS support
  • volume control
  • automatic frequency control
  • automatic gain control
  • Arduino® library available
  • class D 2.8 W amplifier

Specifications:


  • interface: I2C
  • power / logic level: 3.3 V
  • sensitivity: 1.7 µ Vemf
  • max. output power: 2.8 W (4 Ohm) or 1.6 W (8 Ohm)
  • default gain: 18 dB (8 x) (adjustable)
  • THD: 0.02 % (1 W 8 Ohm / 1 kHz)
  • S/N ratio: 98 dB (1.4 W / 8 Ohm)
  • dimensions: 68 x 54 x 23 mm


Documentation and Downloads
