STEPPER DRIVER BOARD

(0 review)

SKU : VM8400DB
Quantity on Hand : 7
Skill Level :

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

9.95 9.950000000000001 USD 9.95

9.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

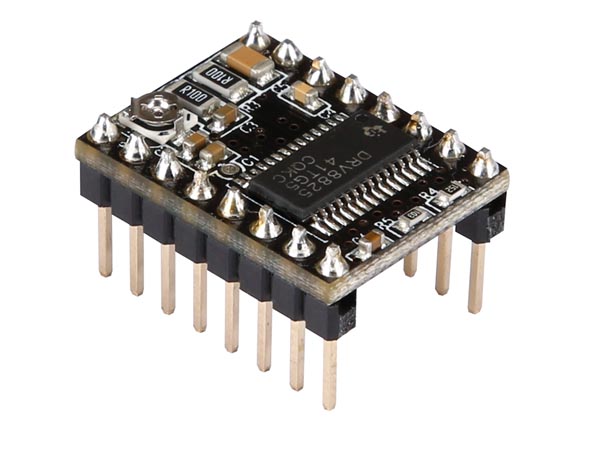

Breakout board for TI DRV8825 microstepping bipolar stepper motor driver with adjustable current limiting, over-current and over-temperature protection and 6 microstep resolutions (down to 1/32-step). It allows you to control a bipolar stepper motor in a simple way.

Features

  • simple step and direction control interface
  • six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
  • current adjust trimmer
  • can interface directly with 3.3 V and 5 V systems
  • over-temperature thermal shutdown, over-current shutdown and under-voltage lockout
  • short-to-ground and shorted-load protection

Specifications

  • minimum operating voltage: 8.2 V
  • maximum operating voltage: 45 V
  • continuous current per phase: 1.5 A
  • maximum current per phase: 2.2 A (with cooling)
  • minimum logic voltage: 2.5 V
  • maximum logic voltage: 5.25 V
  • dimensions: 20 x 15 mm (0.8" x 0.6 ")
