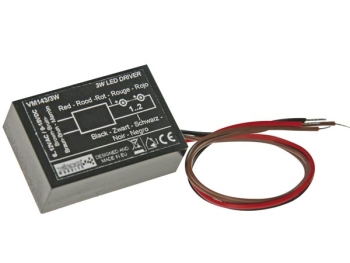

3W Power LED Driver Module
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
Description: Power up to two 3W high-power LEDs (not incl.) : "L-HP3PWN", "L-HP3RN1", "L-HP3GN", "L-HP3BN", "L-HP3YN"
Delivers accurate constant current required by most high power leds
High efficiency due to switch mode principle
Built-in rectifier for easy connection to AC source
Short circuit protected
No heatsink required
Also suited as fixed current NiCd/NiMH battery charge circuit
For home, disco, stage, education, architectural lighting, science projects, ...
One or two 3W LED's
700mA constant current source
Input voltage: 6..12VAC/9-18VDC
Power consumption: 650mA max.
Dimensions: 1.7 x 1.2 x 0.6"
Documentation and Downloads
