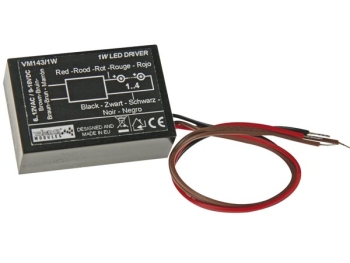

Description: Power up to four 1W high-power LEDs (not incl.) : "L-HP1PWN", "L-HP1R", "L-HP1G", "L-HP1B", "L-HP1Y"
Delivers accurate constant current required by most high power leds
High efficiency due to switch mode principle
Built-in rectifier for easy connection to AC source
Short circuit protected
No heatsink required
Also suited as fixed current NiCd/NiMH battery charge circuit
For home, disco, stage, education, architectural lighting, science projects, ...
One to maximum four 1W LED's
350mA constant current source
Input voltage: 6..12VAC/9-18VDC
Power consumption: 650mA max.
Dimensions: 1.7 x 1.2 x 0.6"
