Mini PIC-PLC Application Module

  • WeightMajor
  • WeightMinor

49.95 49.95 49.95 USD


This combination does not exist.

Add to Cart

SKU : VM142
Quantity on Hand : 2
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

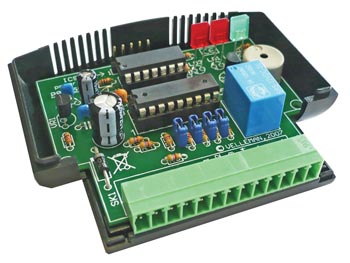

Description: This application module may seem small but is big in performance - all depends on your programming skills. Now you can create your own custom application without the hassle of making the hardware. All the buffered inputs and outputs are ready-made for you. The module features on-board LED, a relay output and a buzzer. Make your own automation, controller, car application. The Controller (type PIC16F630) can be programmed in Microchip PIC Assembler and other compilers. The compiler HEX file can be programmed using one of our PIC programmers K8048, K8076, VM111 or VM134.


  • 9 free programmable I/Os (4 in-, 5 outputs)

  • PIC16F630 microcontroller from Microchip® on-board

  • LED indication for power supply and relay output

  • 1 free programmable LED indication

  • On-board mini buzzer for audible signals

  • On-board ICSP™ connector for programming

  • PIC™ programmer supports PIC16F630.


  • Power supply: 12V DC (unregulated) / 100mA

  • 4 inputs (voltage sensing inputs)

  • Input signal voltage: 5 - 24VDC, @ 4K7

  • 4 NPN transistor outputs (open-collector, sink outputs).:

  • Transistor output current: max. 100mA each

  • Direct 12V relay drive possible (no need for protection diode)

  • 1 relay output with NO/NC contact (2A)

  • MCU speed: fixed 4MHz internal oscillator

Dimensions: 80 x70 x 25mm / 3,15 x 2,75 x 0,98"
