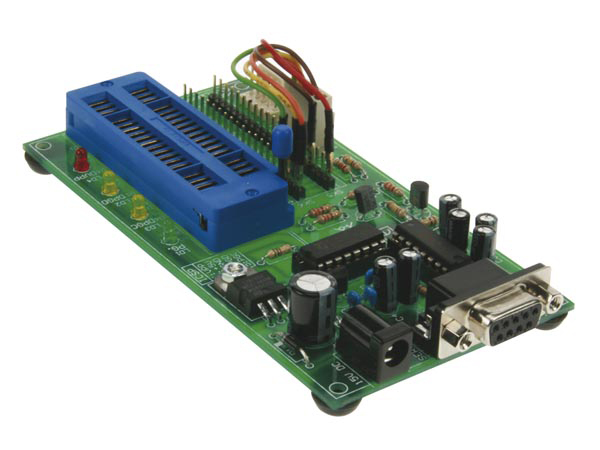

PIC™ Programmer Board (Assembled)

(0 review)

SKU : VM134
Quantity on Hand : 4
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


14.95 14.950000000000001 USD 14.95


Not Available For Sale

This combination does not exist.

Add to cart

This board can program a wide range of Microchip® PIC microcontrollers


  • Regularly updated list of microcontrollers through our web site

  • Onboard configurable 40 pin. ZIF socket

  • Easy to use programming PICprog2006 software included

  • On board "In Circuit Serial Programming" connector

Currently supported controllers (check web site for updates):

PIC10F200, PIC12C508A, PIC12CE518, PIC16F54, PIC16F84A, PIC16F27, PIC16F627A, PIC16F628, PIC16F628A, PIC16F 30, PIC16F648A, PIC16F676, PIC16F785, PIC16F870, PIC16F871, PIC16F872, PIC16F873, PIC16F873A, PIC16F874, PIC16F874A, PIC16F876, PIC16F876A, PIC16F877, PIC16F877A, PIC18F1220, PIC18F1320, PIC18F2220, PIC18F2320, PIC18F4220, PIC18F4320, PIC18F2221, PIC18F2321, PIC18F2410, PIC18F2420, PIC18F2455, PIC18F2480, PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2525, PIC18F2550, PIC18F2580, PIC18F2585, PIC18F2610, PIC18F2620, PIC18F2680, PIC18F4221, PIC18F4321, PIC18F4410, PIC18F4420, PIC18F4455, PIC18F4480, PIC18F4510, PIC18F4515, PIC18F4520, PIC18F4525, PIC18F4550, PIC18F4580, PIC18F4585, PIC18F4610, PIC18F4620, PIC18F4680


  • Power supply: 15V DC, min. 300mA adapter (Ex. PS1508)

  • Serial port connector: 9 p. SUBD

  • Dimensions: 132x65x20mm / 5,23 x 2,57 x 0,79"

  • Minimum system requirements:

    • IBM Compatible PC, Pentium or better

    • Windows 98/ME/ NT/2000/XP/VISTA

    • CDROM drive

    • Free serial RS232 port required (*)

Note: (*) not compatible with USB to serial (RS232) converter! The Microchip name and logo, PIC, and PICmicro are registered trademarks of Microchip Technology Inc. in the USA and other countries Windowsâ„¢ is a registered trademarks of Microsoft Corporation

Documentation and Downloads
