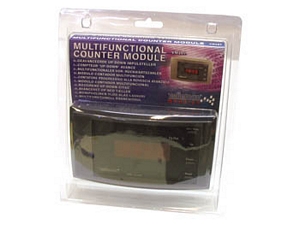

Multi-functional Counter Module

    25.99 25.99 25.990000000000002 USD


    This combination does not exist.

    Add to Cart

    SKU : VM107
    Quantity on Hand : 2
    Skill Level : Assembled and Tested
    ROHS Compliant

    Buy 10, Get 5% Off!
    Buy 100, Get 10% Off!

    30-day money-back guarantee
    Free Shipping in the U.S. on Orders over $75
    We offer worldwide shipping as well
    Buy now and choose from several shipping methods

    Terms and Conditions



    Description: Ideal for counting people or parts, for keeping scores, etc. The HOURS:MIN and the MIN:SEC functions are also very practical (displays 23:59 & 59:59). A built-in oscillator makes it possible to time intervals without making use of an external oscillator (clock function). Counting impulses (addition & subtraction) can be given both through push buttons and the counting inputs. A memory function constantly compares the current value with a preset value and activates an output for as long as both are equal.


    • Count input through on-board pushbuttons or by external pulses

    • Display modes: normal or time (hh:mm and mm:ss)

    • An internal oscillator allows time measurement

    • Programmable pre-set value with equal output

    • Selectable input debounce delay


    • Counter input voltage: 3...12V DC (normal dry contact also possible)

    • EQUAL output: 5V DC / max. 50mA

    • Max. counting speed: 200 / sec. (2 / sec. with long debounce delay)

    • Max. count: 4 digits (9999 / 23h59m / 59m59s)

    • Power supply: 9 - 12V DC or transformer 2 x 9V AC / 300mA

    • Power consumption: 150mA max.

    • Dimensions: 6.5 x 3.5" x 1.4"
