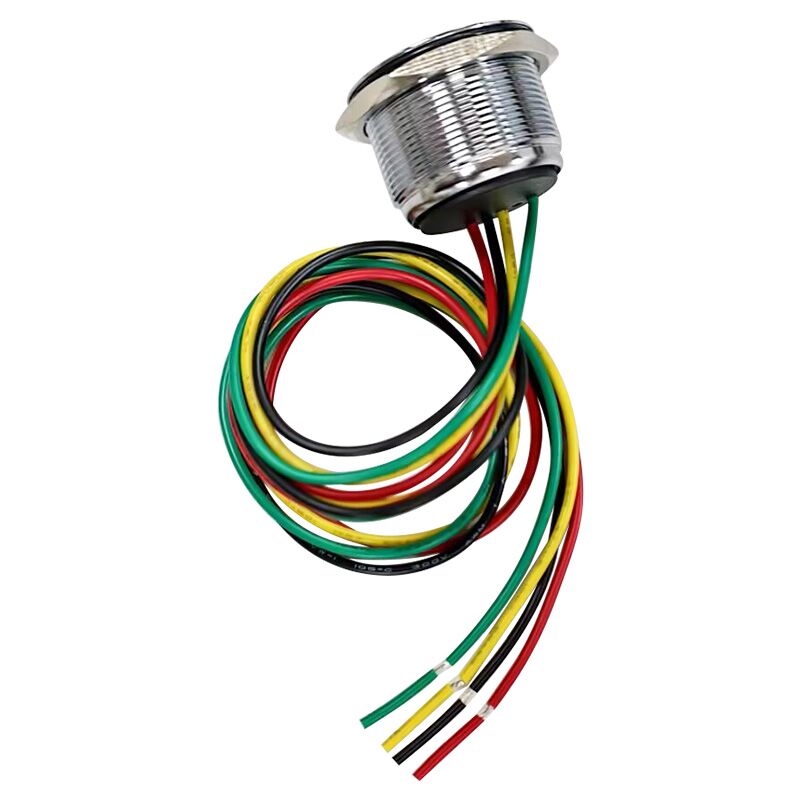

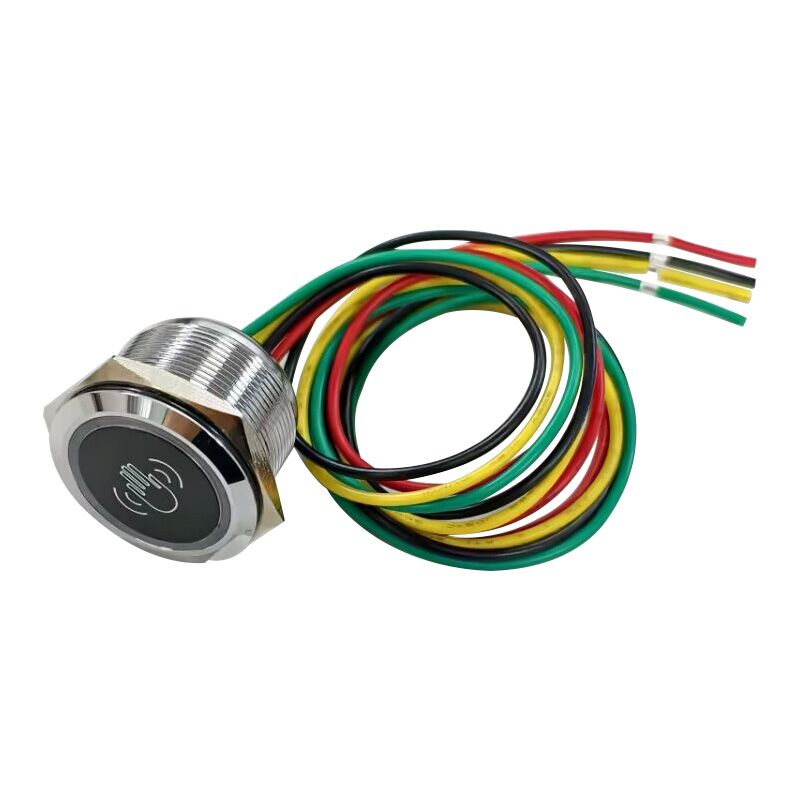

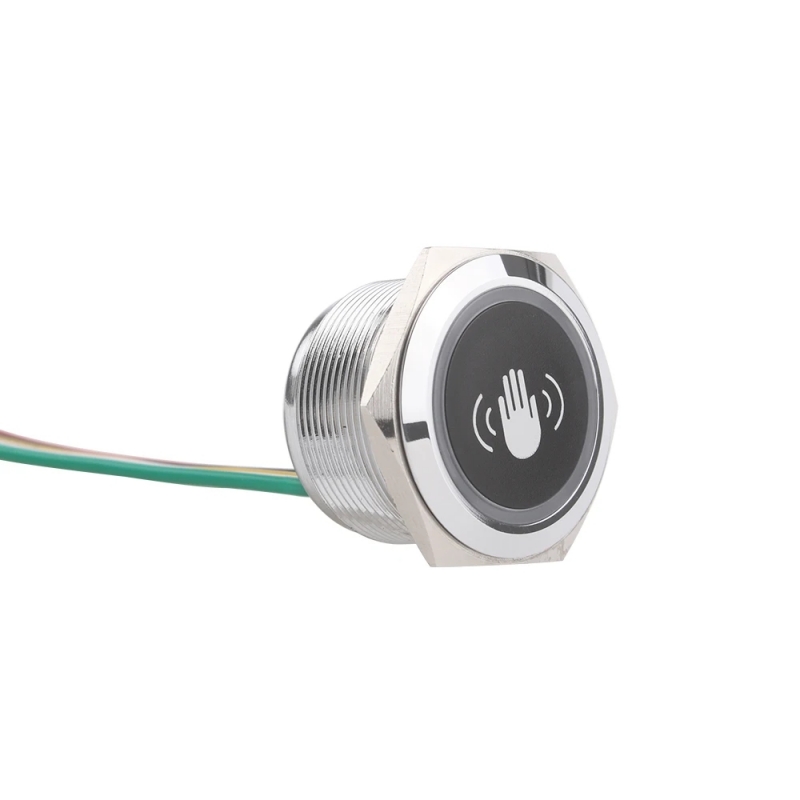

Description: When connecting this sensor to the FN-TG01, you can refer to the following method:
Red wire connects to VCC
Black and yellow wires connect to GND
Green wire connects to TG
When connecting this sensor to the FN-TG01S, you can refer to the following two methods:
Method 1:
Red wire connects to Load+
Black and yellow wires connect to GND
Green wire connects to TG
Method 2:
Red wire connects to PWR+ (in parallel with the positive of power input)
Black wire connects to PWR- (in parallel with the negative of power input)
Yellow wire connects to GND
Green wire connects to TG

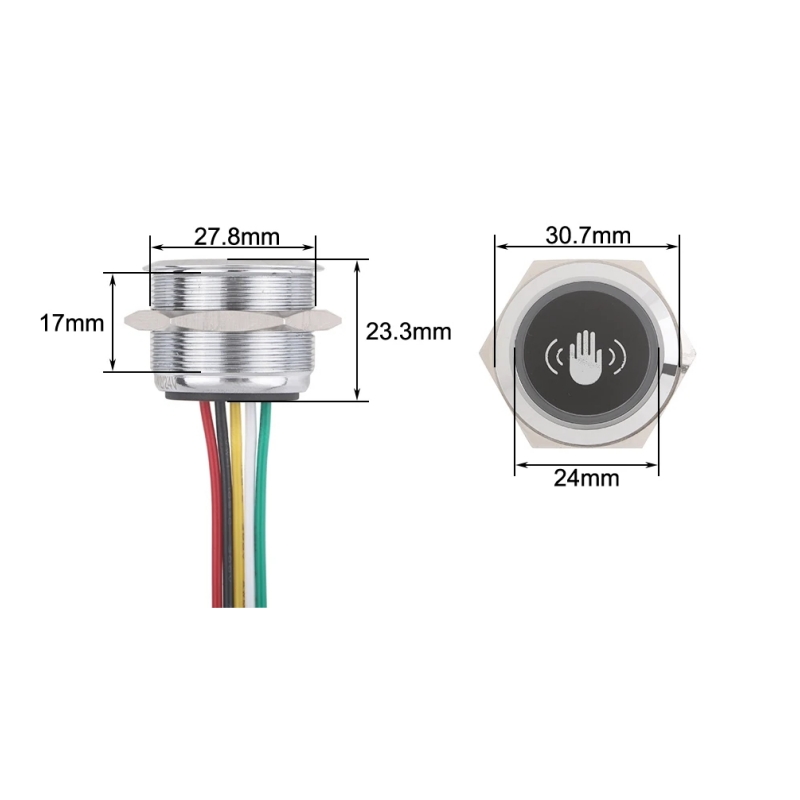

Features:
- Operating voltage: 12-24V DC
- Material of body: aluminum alloy
- Protection class: IP67
- LED color: blue (standby) / green (working)
- Inductive distance: ≤10cm
- Output: 1 x NO switch contact
- Max current: 1A
- Length of the wires: about 50cm
